Product Details
Brand Name: WAROM
Model Number: BAYD86
Payment & Shipping Terms
Can Be Used In: |
Zone 1 And Zone 2 Zone 21 And Zone 22 Class I, Zone 1 And Zone 2 Class I, Division 1, Groups A, B, C, D |
Designed With Test Button: |
Press The Button, Lamp Shall Automatically Enter Into Emergency Status. |
Ultra-bright LED Lamp: |
Low Power Consumption And Long Service Life Up To 50,000 Hours; Energy Saving And Environmental Protection. |
Can Be Used In: |
Zone 1 And Zone 2 Zone 21 And Zone 22 Class I, Zone 1 And Zone 2 Class I, Division 1, Groups A, B, C, D |
Designed With Test Button: |
Press The Button, Lamp Shall Automatically Enter Into Emergency Status. |
Ultra-bright LED Lamp: |
Low Power Consumption And Long Service Life Up To 50,000 Hours; Energy Saving And Environmental Protection. |
Product Introduction
| Global (IECEx) | IECEx (applied for) |
| Gas and dust |
Ex mb eb ib IIC T6 Gb Ex tb IIIC T80℃ Db |
| Europe (ATEX) | ATEX (applied for ) |
| Gas and dust |
II 2 G Ex mb eb ib IIC T6 Gb
II 2 D Ex tb IIIC T80℃ Db |
| Certificates | IECEx; ATEX; |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Enclosure |
GRP (glass fiber reinforced polyester) |
| Exposed fastener | Stainless steel |
| Rated voltage | 100~277V AC 50/60Hz, 100~250V DC, 12~48V AC/DC |
| Lamp | LED lamp (working voltage DC 3.6V) |
| Power consumption | 8W |
| Emergency time | 180min |
| Rated capacity | 800mAh |
| Charging time | 16h |
| Earthing protection | M5 (internal & external earth bolts) |
| Ambient temperature | -60℃~+60℃ |
| Terminal | 3 x 1.5~2.5mm² (L+N+PE) |
| Cable entries |
2 x M25 x 1.5 plugs |
| Cable gland | DQM-I is recommended. |
| Weight | 8kg |

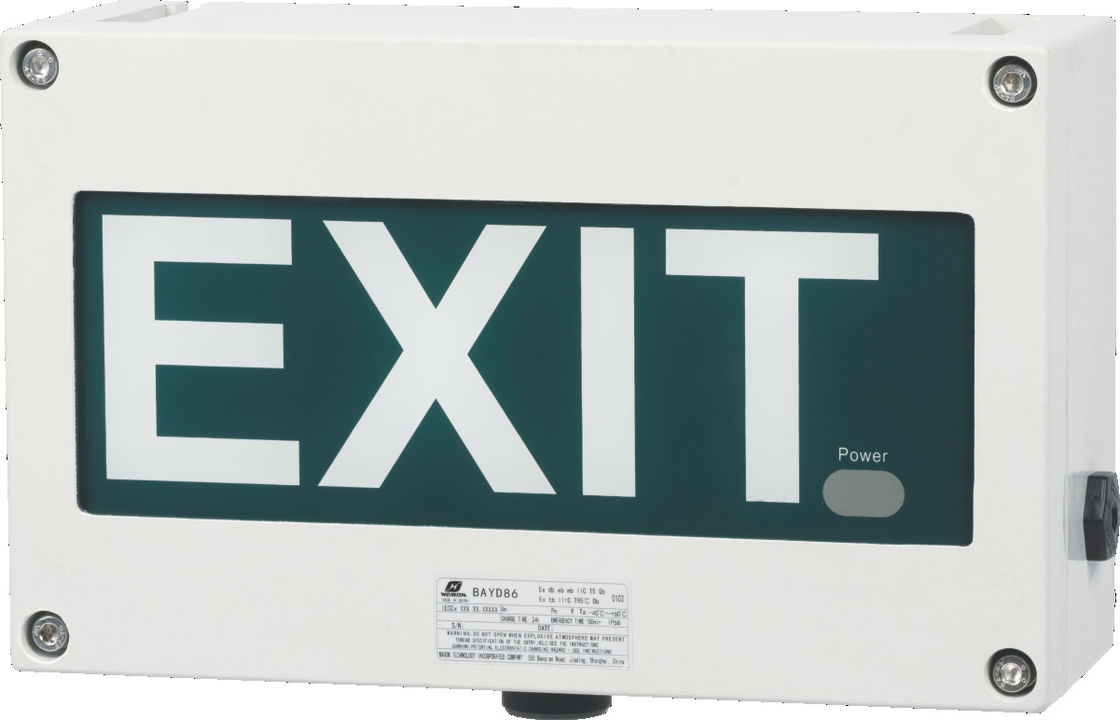

BAYD86 Series Explosion-proof Emergency Exit Light Fittings
(Download here:BAYD85 Series Explosion-proof Emergency Exit Light Fittings.pdf)
