Product Details
Place of Origin: CHINA
Brand Name: WAROM
Model Number: BBJ86
Payment & Shipping Terms
Flash Frequency: |
150~160(times/min) |
Ultra-bright LED Lamp: |
Low Power Consumption And Longservice Life |
Terminal: |
3 X 1.5~2.5mm² (L+N+PE) |
Product Name: |

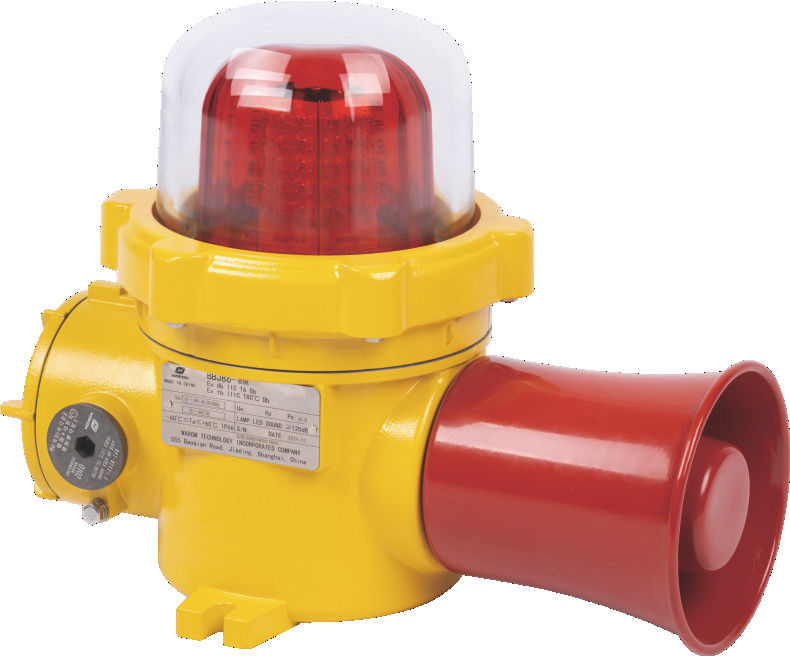

BBJ86 Series Explosion-proof Audio And Visual Caution Spotlight Fittings (Ex Db IIC) |
Enclosure Surface: |
Powder Coated Yellow (RAL1021) |
Transparent Cover Material: |
Toughened Glass |
Ambient Temperature: |
-60℃~+60℃ |
Cable Gland: |
DQM- (Ex D) Or DQM-ll (Ex D) Is Recommended |
Flash Frequency: |
150~160(times/min) |
Ultra-bright LED Lamp: |
Low Power Consumption And Longservice Life |
Terminal: |
3 X 1.5~2.5mm² (L+N+PE) |
Product Name: |
BBJ86 Series Explosion-proof Audio And Visual Caution Spotlight Fittings (Ex Db IIC) |
Enclosure Surface: |
Powder Coated Yellow (RAL1021) |
Transparent Cover Material: |
Toughened Glass |
Ambient Temperature: |
-60℃~+60℃ |
Cable Gland: |
DQM- (Ex D) Or DQM-ll (Ex D) Is Recommended |
Product Introduction
Specification
| Global (IECEx) | IECEx PCET 24.0028X |
| Gas and dust | Ex db llC T6 Gb |
| Europe(ATEX) | ATEX (applied for) |
| Gas and dust |
|
| Certificates | IECEx; ATEX; |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
Data
| Material | Enclosure: Copper-free aluminium alloy, powder coated surface, yellow |
| Lamp power (W) | 45W, 35W, 10W |
| Lamp colour | Red, blue,yellow,green |
| Ambient temperature | -60℃~+60℃ |
| Rated voltage | 100~277VAC 50/60Hz:130~250V DC; 12~48V AC/DC |
| Terminal | 3 x 1.5~4mm2 (L+N+PE) |
| Cable entries | 3 x M25 x 1.5 plugs |
BBJ86 Series Explosion-proof Audio and Visual Caution Spotlight Fittings
(Download here:BBJ86 Explosion-proof Audio and Visual Caution Spotlight Fitting.pdf)
