BAT85 Series Explosion Proof...

Explosion Protection Type

• Standards: CENELEC, IEC, NEC
• Zones:
  • Zone 1 and Zone 2
  • Zone 21 and Zone 22
  • Class I, Zone 1 and Zone 2
  • Class I, Division 1, Groups A, B, C, D

Product Parameters

• Explosion protection:
  • IECEx (Gas and dust): Ex db IIC T3 or xxx°C Gb; Ex tb IIIC Txxx°C Db IP66
  • ATEX (Gas and dust): II 2 G Ex db IIC T3 or xxx°C Gb; II 2 D Ex tb IIIC Txxx°C Db IP66
• Certificates: IECEx; ATEX; CU-TR

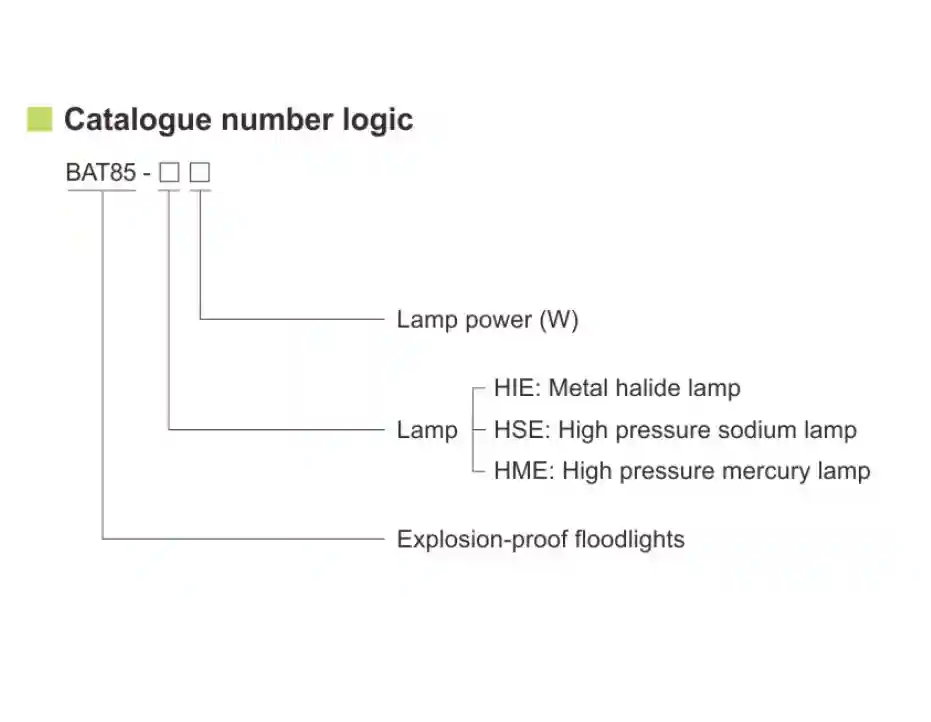

• Product Type: BAT85
• Material:
  • Enclosure: GRP, stands 7J impact, corrosion-proof
  • Glass cover: Toughened glass, stands 4J impact
  • Internal reflector: High-purity aluminium
  • Exposed fastener: Stainless steel
• Ballast: Electromagnetic ballast, rapid starting, stable performance
• Lamp holder: European standard: E27; American standard: E26
• Available lamp:
  • Metal halide lamp (HIE): 70W, 100W, 150W
  • High pressure sodium lamp (HSE): 70W, 100W
  • High pressure mercury lamp (HME): 80W, 125W
• Rated luminous flux: 10500~56500lm
• Rated voltage:
  • European standard: 120V, 208V, 220~240V, 250V, 277V AC 50Hz (60Hz is optional)
  • American standard: 120V, 208V, 220~240V, 250V, 277V AC 60Hz (50Hz is optional)
• Earthing protection: M5 (internal & external earth bolts)
• Degree of protection: IP66
• Ambient temperature: -40°C~+60°C (+40°C)
• Terminal: 3 x 1.5~4mm² (L+N+PE)
• Cable entries: 2 x M25 x 1.5 plugs
• Cable glands: DQM-II (Ex d) or DQM-III (Ex d) is recommended
• Weight: European standard: 28.50kg; American standard: 31.40kg

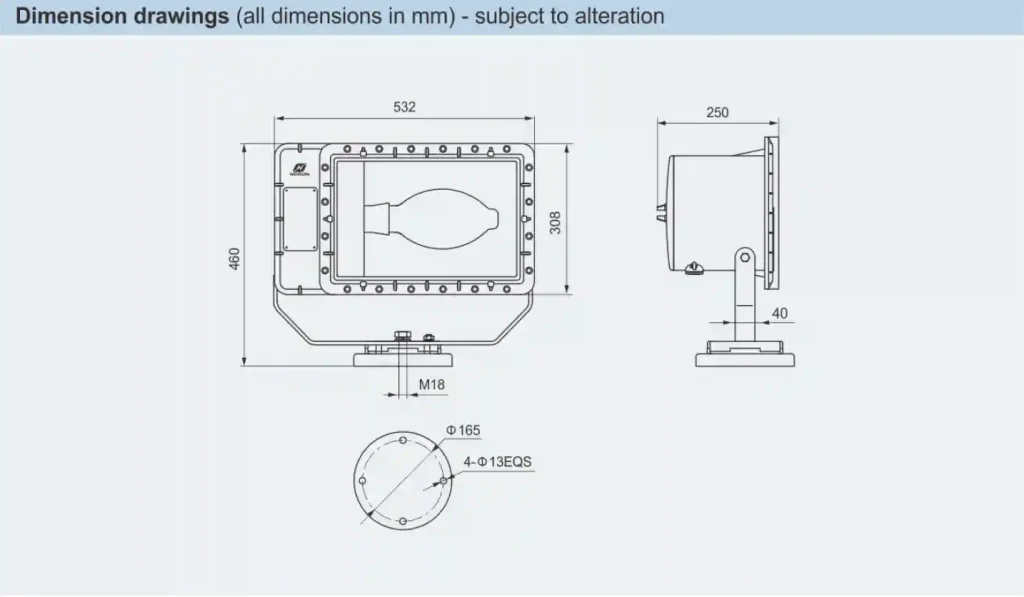

• Size: 532x308x250mm
• HS code: 940549
• Country of origin: China

Applicable Industries

Explosion-Proof Floodlight is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.

It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.

Credibility

Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.

Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.

FAQ

• Both American standard and European standard are available.
• Q1: Are the explosion-proof floodlights suitable for outdoor environments?
• A: Yes, the product features an IP66 protection rating, enabling it to withstand outdoor rain, snow, and dusty conditions.
• Q2: Do you support customization for different voltages?
• A: Yes, we support customization and can provide a range of voltages from 110V to 250V among other custom voltage specifications.
• Q3: What international standards are available for selection?
• A: Both American standard and European standard are available.
