BAY51-D Series Explosion Proof Fluorescent Light Fittings T8 T5 Fluorescent Fixture

BAY51-D Series Explosion Proof...

◆ The explosion proof fluorescent lamp features three types enclosure with explosion-proof components inside.
◆ The glass tube of Explosion proof fluorescent light stands for 4J impact.
◆ Fluorescent lamp is built-in LED driver, wide coltage input, CC-CV output electronic ballast, power factor ≥0.95.
◆ End of explosion proof lamp life (EOL) rectification effect protection.

TECHNICAL DATA

Explosion Protection Type

Standards: CENELEC, IEC, NEC
Zones:
- Zone 1 and Zone 2
- Zone 21 and Zone 22
- Class I, Zone 1 and Zone 2
- Class I, Division 1, Groups B, C, D

Product Parameters

Explosion Protection:
- IECEx (Gas and dust): Ex db IIB T6 Gb; Ex db IIB+H2 T6 Gb; Ex tb IIIC T80°C Db IP66
- ATEX (Gas and dust): II 2 G Ex db IIB T6 Gb; II 2 G Ex db IIB+H2 T6 Gb; II 2 D Ex tb IIIC T80°C Db
Product Type: BAY51-D
Material:
- Enclosure: Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021)
- Glass tube: Toughened glass, stands 4J impact
- Wire guard (optional): Powder coated carbon steel (white) or stainless steel
- External reflector (optional): Powder coated pure aluminium
- Exposed fastener: Stainless steel
Ballast: Electronic ballast, wide voltage input, rapid starting, stable performance, power factor ≥0.95
LED driver: Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95
Lamp specification: T8 fluorescent lamp (supplied with the light fittings)
Lamp power: 18Wx2, 36Wx2, 58Wx2
Color rendering index: ≥80
Colour temperature: 5000K
Rated luminous flux: 2600~10000lm
Rated voltage: 100-305V AC 50/60Hz
Earthing protection: M5 (internal & external earth bolts)
Degree of protection: IP66
Ambient temperature:
- Ex db IIB+H2 T6 Gb / II 2 G Ex db IIB+H2 T6 Gb: -20°C~+55°C
- Ex db IIB T6 Gb / II 2 G Ex db IIB T6 Gb: -60°C~+55°C
- Ex tb IIIC T80°C Db IP66 / II 2 D Ex tb IIIC T80°C Db: -60°C~+55°C
Terminal: 3 x 1.5~4mm² (L+N+PE)
Cable entries: 2 x M25 x 1.5 plugs (M20 x 1.5 plugs is optional)
Cable gland (optional): DQM-II (Ex d) or DQM-III (Ex d) is recommended
Weight: 5.42kg~7kg

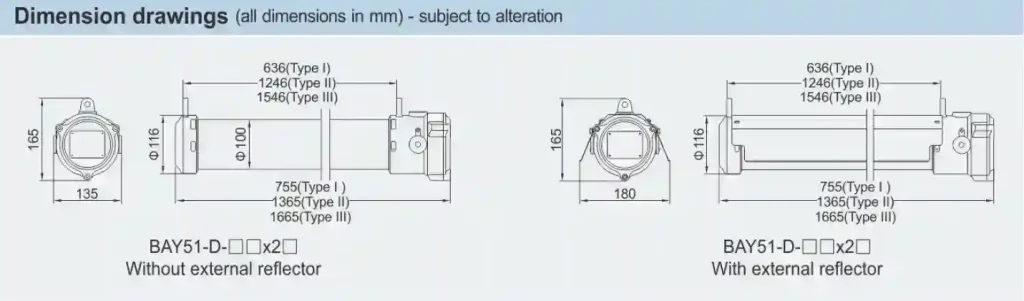

Size: 135x1665x165mm

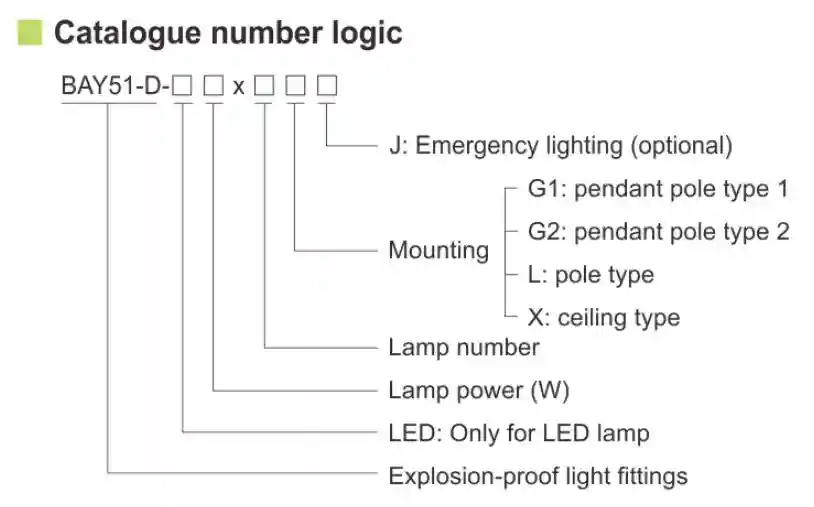

Mounting: L: pole type, X: ceiling type, G: pendant pole type
Emergency unit: With emergency controller and battery pack
- Emergency power: 36W x 30%, 58W x 30%
- Emergency starting time: 0.3s
- Charging time: 24h
- Emergency lighting time: 120min (180min is optional)

Product Classification & Origin

HS code: 940549
Country of origin: China

Applicable Industries

Explosion-Proof Fluorescent Luminaire is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on. It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.

Credibility

Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across with the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas. Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.

FAQ

Q1: Are the explosion-proof fluorescent lights suitable for outdoor environments?
- A: Yes, the product features an IP66 protection rating, enabling it to withstand outdoor rain, snow, and dusty conditions.
Q2: Do you support customization for different voltages?
- A: Yes, we support customization and can provide a range of voltages from 100V to 305V among other custom voltage specifications.
Q3: What installation options are available?
- A: We offer various flexible installation methods, including pendant mounting, pole mounting and ceiling mounting.
