HRY92-LED Series Fluorescent Light...



Explosion Protection Type

• Product Type: HRY92-LED
• Standards: CENELEC, IEC, NEC.
• Zones:
  • Zone 1 and Zone 2.
  • Zone 21 and Zone 22.
  • Class I, Zone 1 and Zone 2.
  • Class I, Division 1, Groups B, C, D.

Product Parameters

• Explosion protection：

IECEX(Gas and dust):
Ex db IIB T6 Gb
Ex db IIB+H₂ T6 Gb
Ex tb IIIC T80℃ Db IP66

ATEX(Gas and dust):
II 2 G Ex db IIB T6 Gb
II 2 G Ex db IIB+H₂ T6 Gb
II 2 D Ex tb IIIC T80℃ Db

• Material:

Enclosure: Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021)
Glass tube: Toughened glass, stands 4J impact
Wire guard (optional): Powder coated carbon steel (white) or stainless steel
External reflector (optional): Powder coated pure aluminium
Exposed fastener: Stainless steel

• LED driver: Wide voltage input, CC-CV (constant current – constant voltage) output, with function of distributed current, constant current, surge-proof and anti-electromagnetic interference, and protection against overcurrent, open circuit, and short circuit.

• Lamp Specification: LED SMT (supplied with the light fittings)
• Lamp Power: 20W, 40W, 60W.
• Color rendering index: ≥80
• Colour Temperature: 5000K
• Rated Luminous Flux: 3031~9244lm
• Rated Voltage: 100-277V AC 50/60Hz
• Degree of Protection: IP66.
• Earthing Protection: M5 internal and external earth bolts.
• Ambient Temperature:
  • IIB/IIIC for Tamb: -60℃~+55℃
  • IIB+H2 for Tamb: -20℃~+55℃
• Terminal: 3 x 1.5~4mm² (L+N+PE).
• Cable Entries: 2 x M25 x 1.5 plugs.
• Cable Gland (Optional): DQM-II (Ex d) or DQM-III (Ex d) is recommended.
• Weight: 5.42kg to 10.33kg

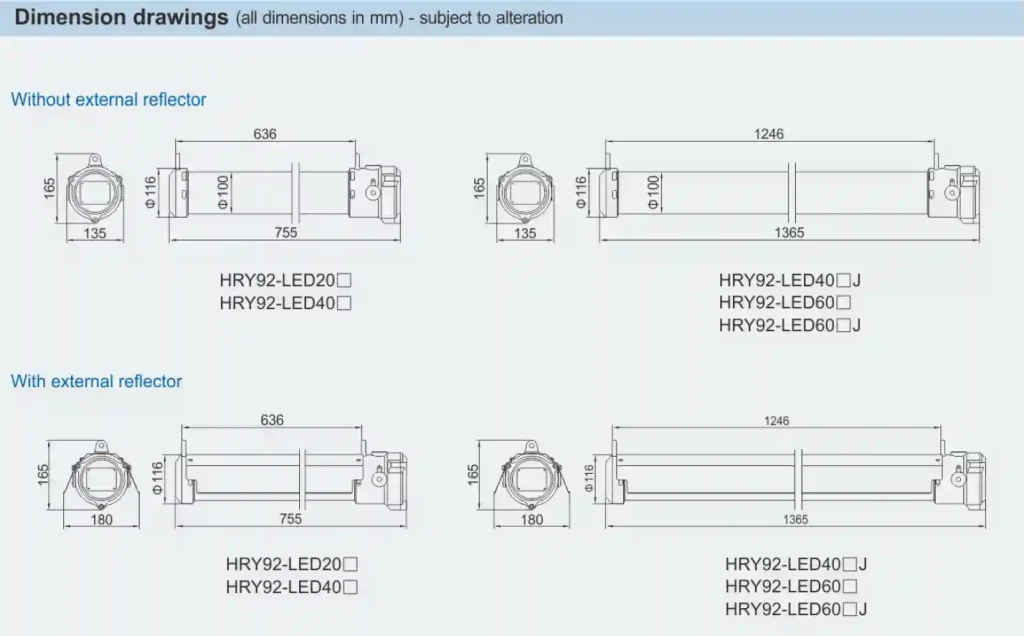

• Size: 135 x 755 x 165mm

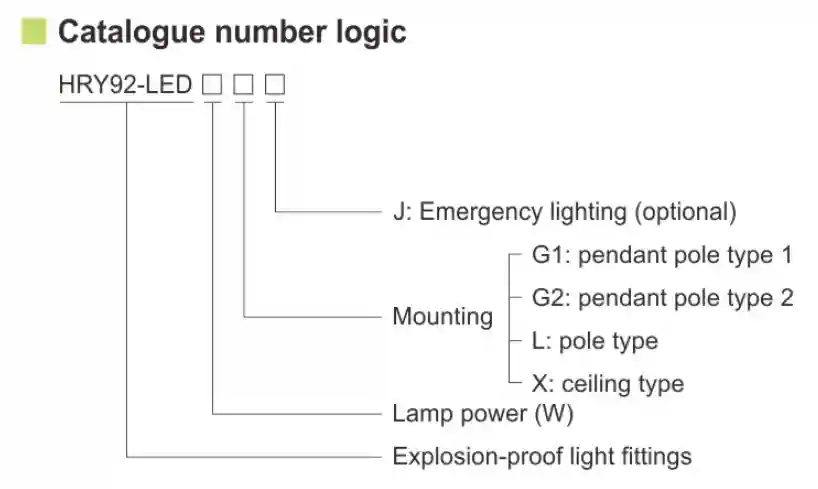

• Mounting Options: L: pole type, X: ceiling type, G: pendant pole type
• Emergency Unit: Includes an emergency controller and battery pack.
• Emergency Power: 40W x 30% or 60W x 30%.
• Emergency Starting Time: 0.3s.
• Charging Time: 24h.
• Emergency Lighting Time: 120min (180min is optional).

• HS Code: 940549.
• Country of Origin: China.

Applicable Industries

Explosion-Proof Fluorescent Luminaires are engineered for hazardous environments across various industries, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, and railways. Key advantages include a high-strength explosion-proof structure, excellent sealing, high efficiency, corrosion and impact resistance, and flexible installation.

Credibility

Warom Explosion-Proof Light Fittings comply with international standards and hold ATEX, IECEx, and EAC certifications. These luminaires feature IP65/IP66/IP67 ratings, ensuring they are waterproof, dustproof, and corrosion-resistant for reliable operation in hazardous areas.

FAQ

Q1: Are the explosion-proof fluorescent lights suitable for outdoor environments?
A: Yes, the product features an IP66 protection rating, enabling it to withstand outdoor rain, snow, and dusty conditions.
Q2: Do you support customization for different voltages?
A: Yes, we support customization and can provide a range of voltages from 100V to 277V among other custom voltage specifications.
Q3: What installation options are available?
A: We offer various flexible installation methods, including pendant mounting, pole mounting and ceiling mounting.
