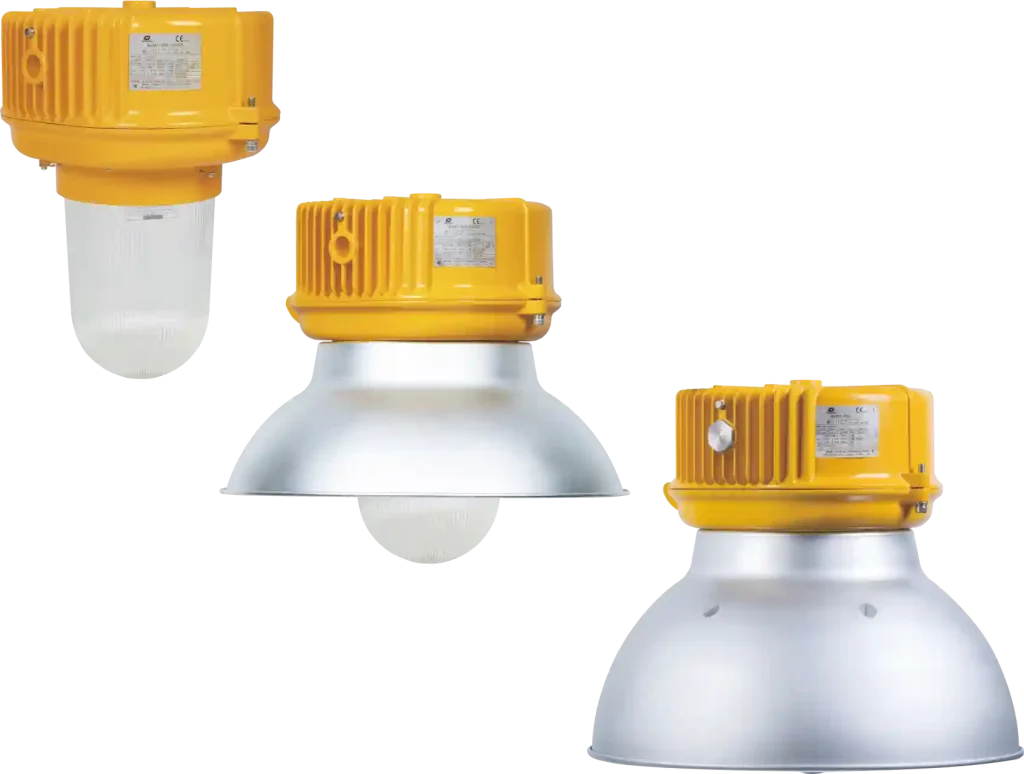

BnD81 Series Pendant Light...

Explosion Protection Type

• Standards: CENELEC, IEC, NEC
• Zones:
  • Zone 2
  • Zone 21 and Zone 22
  • Class I, Zone 2
  • Class I, Division 2, Groups A, B, C, D

Product Parameters

• Explosion protection:
  • IECEx (Gas and dust): Ex nR IIC T4 or T3 Gc; Ex tb IIIC T130°C or T190°C Db
  • ATEX (Gas and dust): II 3 G Ex nR IIC T4 or T3 Gc; II 2 D Ex tb IIIC T130°C or T190°C Db IP65
• Product Type: BnD81
• Certificates: IECEx, ATEX, UL
• Material:
  • Enclosure: Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021)
  • Transparent cover: Toughened glass, stands 4J impact
  • External reflector (optional): Pure aluminium, anodic-oxidation treatment for surface
  • Power factor: COSΦ ≥0.90 (compensated)
  • Exposed fastener: Stainless steel
• Ballast: Electromagnetic ballast, rapid starting, stable performance
• Lamp holder: American Standard: E26; European Standard: E27
• Lamp power:
  • American Standard: 70W, 100W, 150W
  • European Standard: 70W, 80W, 100W, 125W, 150W
• Rated luminous flux: 3800~13500lm
• Rated voltage:
  • American standard: 120V/208V/240V/277V/480V AC 60Hz (50Hz is optional)
  • European standard: 220~240V AC 50Hz (60Hz is optional); 250V AC 50Hz (60Hz is optional)
• Earthing protection: M5 (internal & external earth bolts)
• Degree of protection: IP65
• Ambient temperature: ATEX / IECEx: -60°C~+55°C(+40°C); UL: -60°C~+45°C
• Terminal: 3 x 1.5~4mm² (L+N+PE)
• Cable entries: 1 x M25 x 1.5
• Cable glands: DQM-I (Ex e) is recommended
• Weight: 6.15kg, 8.05kg

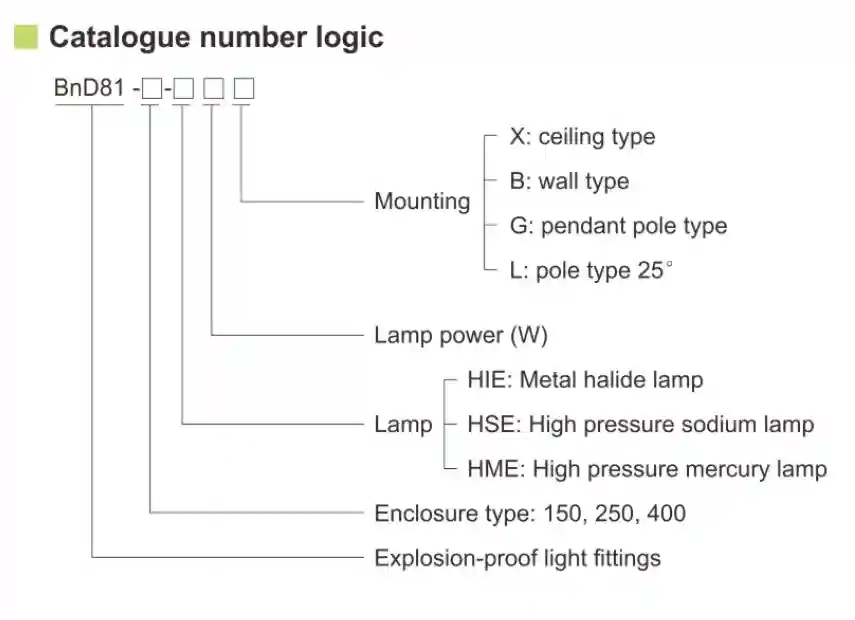

• Mounting: X: Ceiling type, B: wall type, G: pendant pole type, L: pole type 25°
• HS code: 940549
• Country of origin: China

Applicable Industries

Explosion-Proof Pendant Light Fittings is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.

It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.

Credibility

Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.

Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.

FAQ

• Q1: Are the explosion-proof pendant lights suitable for outdoor environments?
  • A: Yes, the product features an IP66 protection rating, enabling it to withstand outdoor rain, snow, and dusty conditions.
• Q2: Do you support customization for different voltages?
  • A: Yes, we support customization and can provide a range of voltages from 110V to 250V among other custom voltage specifications.
• Q3: What installation options are available?
  • A: We offer various flexible installation methods, including Ceiling type mounting, wall type mounting, pendant pole type mounting, pole type 25° mounting.
