BXJ8050-20&6 Series Junction Boxes

◆ Constructed with a high-strength GRP, this explosion-proof terminal boxes ensures safety by containing internal explosions and isolating the external hazardous atmosphere.
◆ The explosion proof enclosure treated with anti-static coating and all fasteners are anti-loosening.
◆ The explosion-proof control box provides centralized cabling and management, make the installation, maintenance, and inspection easier.
◆The IP65 rating prevents internal component of the ex terminal boxes aging and corrosion, which extends system life and lowers maintenance costs.

TECHNICAL DATA

Standards: CENELEC, IEC, NEC.
Zones: Zone 1 and Zone 2; Class I, Zone 1 and Zone 2; Class I, Division 2, Groups A, B, C, D.
Explosion Protection Ratings:
- IECEx (Gas): Ex e II T6.
- ATEX (Gas): II 2 G Ex e IIC T6 Gb.

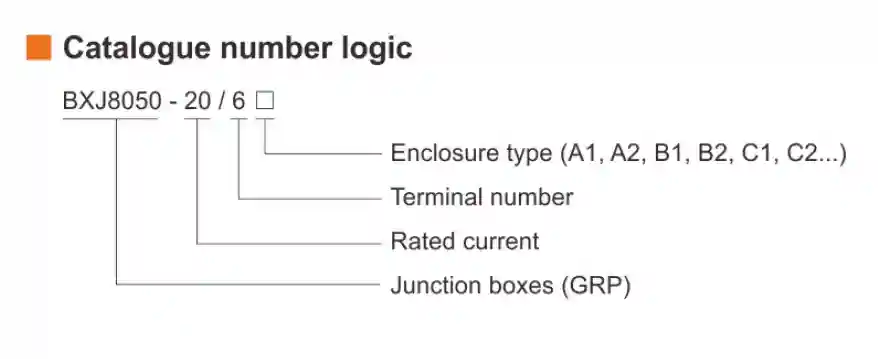

Product Type: BXJ8050-20/6.
Certificates: IECEx; ATEX; CU-TR.
Material:
- Enclosure: GRP (glass fibre-reinforced polyester resin).
- Exposed Fastener: Stainless steel.
Electrical Data:
- Terminals: 6 stud terminals.
- Cross Section of Cable: 0.2~4mm².
- Rated Voltage: Max. 500V AC.
- Rated Current: 20A.
Protection:
- Degree of Protection: IP65.
- Ambient Temperature: -20°C to +55°C.
Cable Entries: Standard, see Selection table.

Explosion-Proof Terminal Boxes are engineered for hazardous environments including petrochemical, natural gas, coal, metallurgy, military, nuclear power, and aerospace.
Safety Role: These boxes act as a critical link in industrial safety frameworks, providing physical isolation and energy control for electrical connections.
Durability: Features a high-strength explosion-proof structure for reliable operation in areas with high temperatures, dust, or corrosive gases.

Certifications: Warom terminal boxes meet stringent international standards, carrying ATEX, IECEx, and EAC certifications.
Performance: Features a T5-T6 temperature rating and IP66 protection for reliable execution in hazardous areas.
Support: Warom ensures seamless project execution from initial design assessment to final certification.

Q1: What are the principles of explosion-proof terminal boxes?
- A: They are based on two main types: Flameproof (Ex d), using precision gaps to cool flames, and Increased Safety (Ex e), preventing arcs/sparks through enhanced insulation.
Q2: Do the terminal boxes need regular maintenance?
- A: Yes; critical checks include inspecting surfaces for damage, ensuring tight fasteners and intact seals, and replacing parts with original factory spares.
Q3: Can internal wiring be connected carelessly after installation?
- A: Absolutely not; the box provides “containment,” but all internal connections must comply with electrical standards and all circuit equipment must be explosion-proof.
Q4: Is it fully waterproof/dustproof?
- A: This depends on the IP rating; typical boxes (such as IP66/67) resist powerful water jets or temporary immersion.
