BXJ-S Series Terminal Boxes



Explosion Protection Type

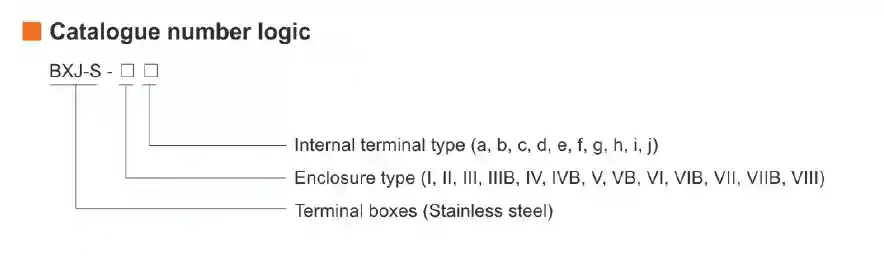

• Product Type: BXJ-S
• Standards: CENELEC, IEC, NEC
• Zones: Zone 0 and Zone 1 and Zone 2; Zone 21 and Zone 22; Class I, Zone 1 and Zone 2; Class I, Division 1, Groups A, B, C, D;
• Explosion Protection Ratings:
  • IECEx (Gas and dust): Ex eb IIC T6…T3 Gb; Ex ia IIC T6 Ga; Ex eb ia IIC T6 Gb; Ex tb IIIC T80℃…T130℃ Db
  • ATEX (Gas and dust): II 2 G Ex eb IIC T6…T3 Gb; II 1 G Ex ia IIC T6 Ga; II 2 D Ex tb IIIC T80℃…T130℃ Db
• Material:
  • Enclosure: Copper-free Aluminium Alloy, powder coated surface
  • Exposed fastener: Stainless steel
• Enclosure Color: Window grey (RAL7040)
• Electrical Data:
  • Rated voltage: Max. 1000V AC; Max. 1500V DC
  • Rated current (Cross section): 24A (2.5mm²), 32A (4mm²), 41A (6mm²), 57A (10mm²), 76A (16mm²), 100A (35mm²).
• Protection:
  • Degree of protection: IP66
  • Ambient temperature: Ex eb: -40℃/-60℃ ~ +30℃/+40℃/+45℃/+55℃/+60℃/+70℃; Ex ia: -40℃/-60℃ ~ +70℃
• Earthing: M6/M6
• HS Code: 853650.
• Country of Origin: China.

Applicable Industries

Explosion-Proof Terminal Boxes are specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on. Engineered with a robust explosion-proof structure, it delivers long-lasting, corrosion-resistant performance and reliable operation in harsh conditions including high temperatures, heavy dust, and corrosive gases.
It’s a critical link within modern industrial safety frameworks.It is not only a basic enclosure, but also an engineered safety system. Explosion-proof terminal boxes via physical isolation and energy control, delivers paramount security for electrical connections in explosion-prone environments, thereby proving indispensable for the protection of life and property.

Credibility

Warom Explosion-Proof Terminal Boxes are engineered for safety in hazardous environments. Certified to ATEX, IECEx, EAC and so on… they meet stringent global requirements. With a T5-T6 temperature rating and IP66 protection, they deliver reliable performance. Warom ex terminal boxes supports your projects with a seamless, end-to-end service — from initial design assessment to final certification, insuring adherence to worldwide occupational health and safety standards.

FAQ

Q1: What are the principle of explosion-proof terminal boxes?
A1: Based on two main types:
Flameproof (Ex d): Most common. Uses precision gaps at joints to cool flames and reduce pressure during internal explosions.
Increased Safety (Ex e): Prevents arcs/sparks via enhanced insulation and electrical clearances during normal operation.
Q2: Are the terminal boxes need regular maintenance ?
A2: Yes. Critical checks include: Inspecting flameproof surfaces for damage; Ensuring tight fasteners and intact seals; Replacing damaged parts with certified components. Damaged parts must be replaced with original factory or certified spare parts. After maintenance, its original explosion-proof performance and protection grade must be restored.
Q3: Can internal wiring be connected carelessly after installing the ex terminal boxes?
A3: Absolutely not! The box only provides “containment.” The internal electrical connections must comply with electrical standards, and all other equipment in the circuit (such as installation switches) must also be explosion-proof.
Q4: Is it fully waterproof/dustproof?
A4: Depends on its IP rating. Typical boxes (such as IP66/67) resist powerful water jets or temporary immersion for reliable protection.
