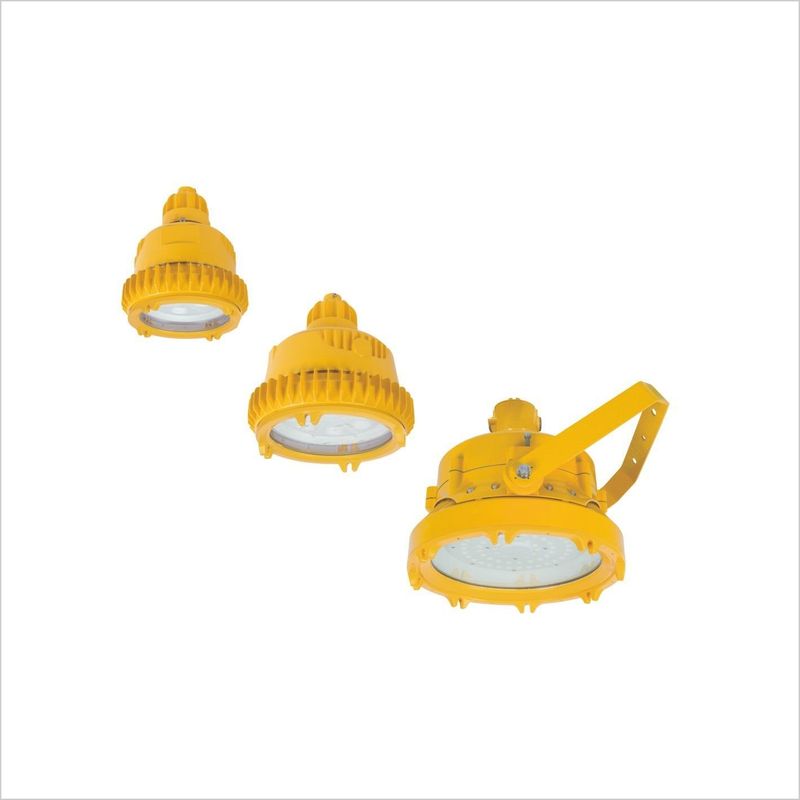

HRD95 Series Explosion Proof...



Explosion Protection Type

Standards: CENELEC, IEC, NEC

Zones: Zone 1 and Zone 2             Zone 21 and Zone 22             Class I, Zone 1 and Zone 2             Class I, Division 2, Groups A, B, C, D

Product Parameters

Explosion protection：IECEX(Gas and dust): Ex db IIC T6 Gb                                                                       Ex tb IIIC T80℃ Db                                    ATEX(Gas and dust):         II 2 G Ex db IIC T6 Gb                                                                              II 2 D Ex tb IIIC T80℃ Db

Product Type: HRD95

Material:  Enclosure: Copper-free aluminium alloy, powder coated surface, yellow (RAL1021)                Transparent cover: Toughened glass, stands 4J impact                Exposed fastener: Stainless steel

LED driver: Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95, with function of distributed current, constant current, surge-proof and antielectromagnetic interference, and protection against overcurrent, open circuit, and short circuit.

Lamp specification: Integrated LED, Multiple LED

Lamp power: 10W, 20W

Color rendering index: ≥80

Colour temperature: 5700K

Rated luminous flux: 1200~2500lm

Rated voltage: 24V AC 50/60Hz, 36V AC 50/60Hz, 100~277V AC 50/60Hz, 24V DC, 36V DC

Earthing protection: M5 (internal & external earth bolts)

Degree of protection：IP66

Ambient temperature：-40℃~+60℃

Terminal: 3 x 1.5~4mm2 (L+N+PE)

Cable entries: M25 x 1.5

Cable gland: See Mounting Accessories & Spare Parts Table

Weight: 9.3kg~27.5kg

Size: 278x278x335mm

Mounting：Bracket type, Ceiling type

Available cable outer diameter: Φ10~Φ14(mm)

HS code: 940549

Credibility

Explosion-Proof Fluorescent Luminaire is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.
It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.

FAQ

For more detailed information on our explosion-proof fluorescent lighting fixtures, customized solutions, or to request a quote, please do not hesitate to contact us. We are committed to providing you with professional lighting solutions and comprehensive technical service support.
