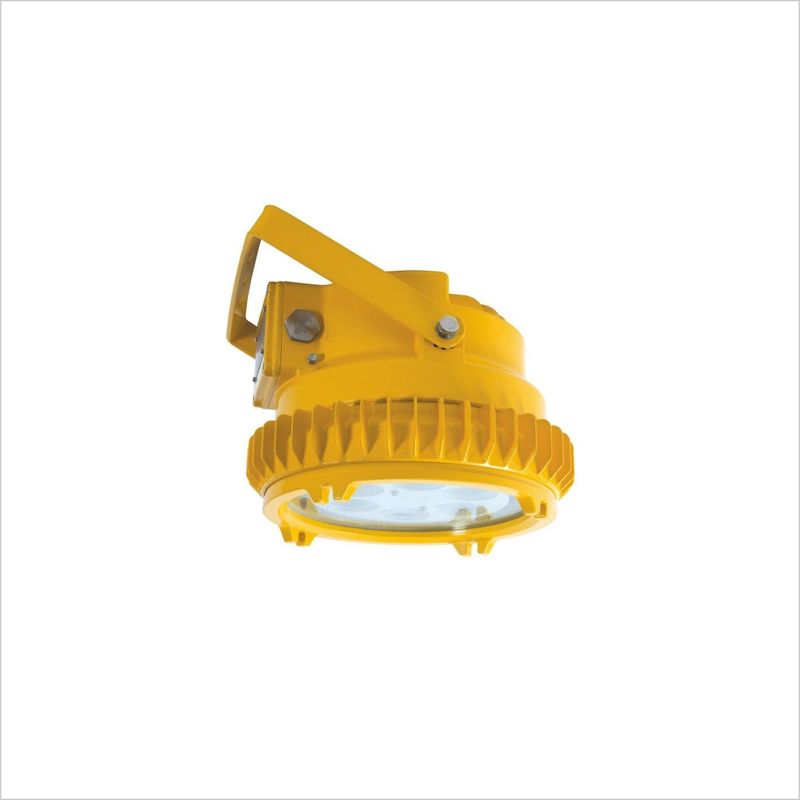

BDD95 Series Portable Explosion...



Product Parameters

• Product Type: BDD95
• Standards: CENELEC, IEC, NEC
• Zones:
  • Zone 1 and Zone 2
  • Zone 21 and Zone 22
  • Class I, Zone 1 and Zone 2
  • Class I, Division 1, Groups A, B, C, D

• Explosion protection：

IECEX(Gas and dust):
Ex db eb op is IIC T□¹⁾ Gb
Ex tb op is IIIC T□¹⁾ Db

ATEX(Gas and dust):
II 2 G Ex db eb op is IIC T□¹⁾ Gb
II 2 D Ex op is tb IIIC T^□1) Db

• Material:
  • Enclosure: Copper-free aluminium alloy, powder coated surface, yellow (RAL1021)
  • Transparent cover: Polycarbonate, stands 4J impact
  • Exposed fastener: Stainless steel
• LED driver: Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95, with function of distributed current, constant current, surge-proof and antielectromagnetic interference, and protection against overcurrent, open circuit, and short circuit.
• Lamp specification: Integrated LED, Multiple LED
• Lamp power: 60W, 90W
• Color rendering index: ≥80
• Colour temperature: 5700K Note: cool white is available in general. Warm white or nature white is optional, please specify when ordering.
• Rated luminous flux: 7200~54686lm
• Rated voltage: 100~300V AC 50/60Hz,100~250V DC
• Earthing protection: M5 (internal & external earth bolts)
• Degree of protection: IP66
• Ambient temperature: -40℃~+55℃(+40℃)
• Terminal: 3 x 1.5~4mm² (L+N+PE)
• Mounting: bracket type,hook type, pole type
• Cable entries: 2 x M25 x 1.5 plugs
• Cable gland: DQM-II (Ex d) or DQM-III (Ex d) is recommended.
• Weight: 8.1kg~12.2kg
• Size: 245x245x225mm

Product Classification & Origin

• HS code: 940549
• Country of origin: China

Applicable Industries

Explosion-Proof Fluorescent Luminaire is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.

Credibility

Warom Explosion-Proof LED Light fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across with the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.
Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.

FAQ

Q1: Are the explosion-proof fluorescent lights suitable for outdoor environments?
A: Yes, the product features an IP66 protection rating, enabling it to withstand outdoor rain, snow, and dusty conditions.
Q2: Do you support customization for different voltages?
A: Yes, we support customization and can provide a range of voltages from 110V to 250V among other custom voltage specifications.
Q3: What installation options are available?
A: We offer various flexible installation methods, including pendant mounting, wall mounting, ceiling mounting, and pendant chain installation.
