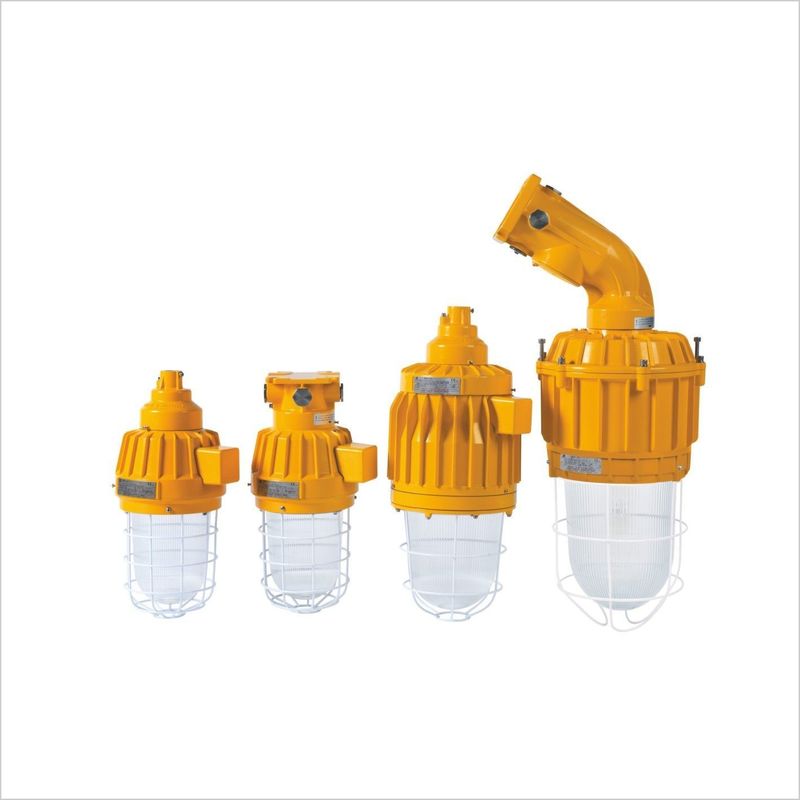

HRD61 Series Explosion Proof Pendant Light Fittings atex approved 70W~400W IP66

Product Details

Place of Origin: China

Brand Name: Warom

Certification: IECEx; ATEX; CU-TR

Model Number: HRD61

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

IP66 explosion proof pendant light fittings

,

IECEx certification explosion proof pendant light

,

atex approved explosion proof pendant light

Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D
Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D
Description
HRD61 Series Explosion Proof Pendant Light Fittings atex approved 70W~400W IP66
Product Introduction

20190617103311642.png@!w400






Specification
Global (IECEx) IECEx CQM 11.0010X
Gas and dust

Ex db IIC T4 or T3 Gb

Ex tb IIIC T130℃ or T190℃ Db IP66

Europe (ATEX) TUV CY 20 ATEX 0206281 X
Gas and dust  20190603152349458.jpg@!w400 II 2 G Ex db IIC T4 or T3 Gb
   20190603152349458.jpg@!w400 II 2 D Ex tb IIIC T130℃ or T190℃ Db
Certificates IECEx; ATEX; CU-TR
Conformity to standards EN; IEC
Degree of protection IP66
Ambient temperature

T4 or T130℃ for Tamb:-60℃~+40℃(HIE,HME)

T3 or T190℃ for Tamb:-60℃~+55℃(HIE,HME)

T4 or T130℃ for Tamb:-60℃~+55℃(HSE)



Data
Material

Copper-free Aluminium Alloy,powder coated surface,yellow (RAL1021),

Powder coated carbon steel,white,Toughened glass,stands 4J impact

Weight 9.3~23.65kg
Dimensions different power has different dimension
Lamp specification HIE HSE HME
Lamp power (W) 70~400W
Rated voltage 220~240V AC 50/60Hz
Rated luminous flux 3800~56500lm
Terminal 3 x 1.5~2.5mm2 (L+N+PE)
Cable entries

1xG3/4(pendant pole type and hook type);

4xm25*1.5(wall type and ceiling type);

1xG1(pole type)

Available cable outer diameter Φ10~Φ14 (mm)



Download

HRD61 Series Explosion-proof Light Fittings

(Download here:icon_pdf.gifHRD61 Series Explosion-proof Light Fittings.pdf)



Global (IECEx): IECEx CQM 11.0010X

(Download here:icon_pdf.gifIECEx CQM 11.0010 )
