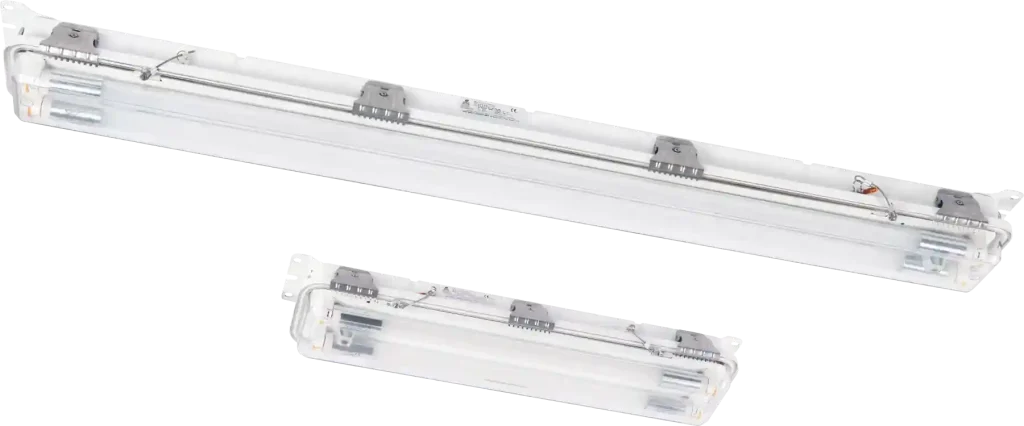

HRY51-G/C LED Series Industrial...



Explosion Protection Type

Product Type: HRY51-G/C LED

Standards: CENELEC, IEC, NECZones: Zone1 and Zone 2
            Zone 21 and Zone 22
               Class I, Zone 1 and Zone 2
               Class I, Division 2, Groups A, B, C, D

Explosion protection：IECEX(Gas and dust): Ex db eb IIC T□ Gb¹⁾
                                                                       Ex db eb q IIC T□ Gb¹⁾
                                                                      Ex tb IIIC T80℃ Db IP66/IP67
                                   ATEX(Gas and dust):   II 2 G Ex db eb IIC T□ Gb¹⁾
                                                                      II 2 G Ex db eb q IIC T□ Gb¹⁾
                                                                      II 2 D Ex tb IIIC T80℃ Db

Material:  Enclosure: Stainless steel
                Diffuser: Polycarbonate, stands 4J impact
                Exposed fastener: Stainless steel

Ballast: Electronic ballast, power factor ≥0.95

LED driver: Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95.

Lamp specification: LED tubes (supplied with the light fittings)

Lamp power: 9Wx2, 18Wx2, 14Wx2, 28Wx2

Color rendering index: ≥80

Colour temperature: 5000K

Rated luminous flux: 1850~7000lm

Rated voltage: 9Wx2, 18Wx2: 170~264V AC 50/60Hz
                       14Wx2, 28Wx2: 100~277V AC 50/60Hz, 200~250V DC

Degree of protection：IP66/IP67

Ambient temperature：9Wx2, 18Wx2:      II 2 G Ex db eb IIC T6 Gb -40℃~+57℃
                                                                  II 2 D Ex tb IIIC T80℃ Db -40℃~+57℃
                                                                  II 2 G Ex db eb IIC T5 Gb -40℃~+58℃
                                                                  II 2 D Ex tb IIIC T80℃ Db -40℃~+58℃
                                14Wx2, 28Wx2:          II 2 G Ex db eb q IIC T6 Gb -40℃~+53℃
                                                                  II 2 D Ex tb IIIC T80℃ Db -40℃~+53℃
                                                                  II 2 G Ex db eb q IIC T5 Gb -40℃~+58℃
                                                                  II 2 D Ex tb IIIC T80℃ Db -40℃~+58℃
                            14Wx2 J, 18Wx2 J:         II 2 G Ex db eb q IIC T6 Gb -40℃~+48℃
                                                                  II 2 D Ex tb IIIC T80℃ Db -40℃~+48℃
                                                                  II 2 G Ex db eb q IIC T5 Gb -40℃~+53℃
                                                                  II 2 D Ex tb IIIC T80℃ Db -40℃~+53℃

Terminal: 3 x 1.5~4mm² (L+N+PE)

Cable entries: 4 x Φ21: 4 x M20 x 1.5 cable glands (SS)

Weight: 4.55kg~13.15kg

Size: 132x13000x100mm

Mounting：X: ceiling type, G: pendant pole type, B: wall type, W: bend pole type, F: flange type, H: fence type, L: pendant chain type

Emergency unit: with emergency controller and battery pack

Emergency power: 14W x 30%, 28W x 30%

Emergency starting time: 0.3s

Charging time: 24h

Emergency lighting time: 120min(180min is optional)

HS code: 940549

Country of origin: China

Applicable Industries

Explosion-Proof Fluorescent Luminaire is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.
It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.

Credibility

Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across with the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.
Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.

FAQ

Q1: Are the explosion-proof fluorescent lights suitable for outdoor environments?
A: Yes, the product features an IP66 protection rating, enabling it to withstand outdoor rain, snow, and dusty conditions.
Q2: Do you support customization for different voltages?
A: Yes, we support customization and can provide a range of voltages from 100V to 277V among other custom voltage specifications.
Q3: What installation options are available?
A: We offer various flexible installation methods, including ceiling type, pendant pole type, wall type, bend pole type, flange type, fence type, pendant chain type.
