BZC Series Explosion Proof Control Station Aluminium For Explosion Endangered Zones

Product Details

Place of Origin: China

Brand Name: Warom

Certification: IECEx; ATEX; CU-TR

Model Number: BZC

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

endangered zones aluminium control station

,

aluminium explosion proof control station

,

explosion zones aluminium control station

Explosion Protection Standard:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups B,C,D
Enclosure:
Copper-free Aluminium Alloy Enclosure, Powder Coated Surface.
Explosion Protection Standard:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups B,C,D
Enclosure:
Copper-free Aluminium Alloy Enclosure, Powder Coated Surface.
Description

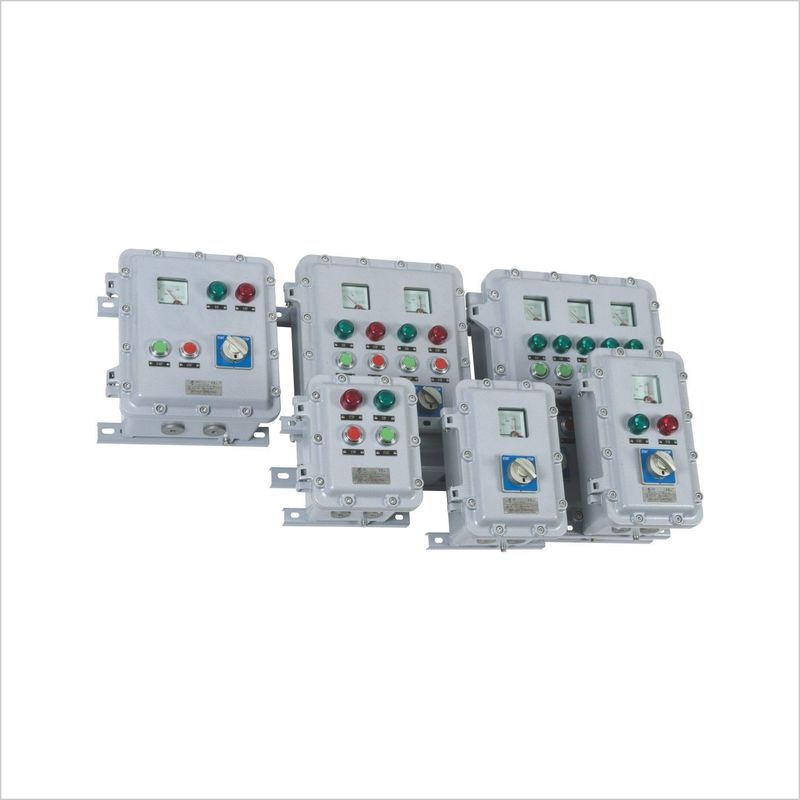

BZC Series Explosion Proof Control Station Aluminium For Explosion Endangered Zones
Product Introduction

20190620154134904.jpg@!w400




Specification
Global (IECEx) IECEx CQM 11.0043
Gas and dust

Ex db IIB+H2 T6 Gb

Ex tb IIIC T80℃ Db IP66

Europe (ATEX) TUV CY 17 ATEX 0205967X
Gas and dust

20190603152349458.jpg@!w400

 II 2 G Ex db IIB+H2 T6 Gb


20190603152349458.jpg@!w400 II 2 D Ex tb IIIC T80℃ Db IP66

Certificates IECEx; ATEX; CU-TR
Conformity to standards EN; IEC
Degree of protection IP66
Ambient temperature  -60℃~+55℃



Data
Material Copper-free Aluminium Alloy,powder coated surface
Dimensions As design
Enclosure colour Window grey(RAL7040)
Exposed fastener Stainless steel
Rated voltage Max.415V AC
Rated current 10A
Internal&external earthing I, II, III: M6/M6; IV, V, VI : M6/M8
Cable entries Standard M□ x 1.5 plug. Please see the Selection table on P4/7
Cable gland (optional) DQM-II (Ex d),DQM-III (Ex d)
Mounting Surface type



Download

BZC Series Explosion-proof Control Stations

(Download here:icon_pdf.gifBZC Series Explosion-proof Control Stations)



Global (IECEx): IECEx CQM 11.0043

(Download here:icon_pdf.gifIECEx CQM 11.0043 Issue No.1.pdf)
