BnY81-LED Series Explosion-proof Light...



Technical Parameters

• Product Type: BnY81-LED
• Standards: CENELEC, IEC, NECZones: Zone 2
             Zone 21 and Zone 22
              Class I, Zone 2
             Class I, Division 2, Groups A, B, C, D
• Explosion protection：IECEX(Gas and dust): Ex ec mb IIC T5/T4 Gc¹⁾
                                                                          Ex db ec mb IIC T5/T4 Gc¹⁾
                                                                         Ex tb IIIC T80℃ Db¹⁾
                                       ATEX(Gas and dust): II 3 G Ex ec mb IIC T5/T4 Gc¹⁾
                                                                        II 3 G Ex db ec mb IIC T5/T4 Gc¹⁾
                                                                        II 3 D Ex tb IIIC T80℃ Db¹⁾
• Material:  Enclosure: GRP, stands 7J impact, corrosion-proof
                 Diffuser: Polycarbonate, high light transmission, stands 7J impact
                  Exposed fastener: Stainless steel
• LED driver: Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95.
• Lamp specification: LED lamp tube, SMD LED
• Lamp power: LED lamp tube: 9W x 2, 14W x 2, 28W x 2
                        SMD LED : 20W, 40W, 60W
• Rated luminous flux: 2948~8690lm
• Rated voltage: 100~277V AC 50/60Hz; 130~250V DC
• Degree of protection: IP66
• Ambient temperature: -40℃~+60℃(+58℃)(+40℃)
• Terminal: 3 x 1.5~4mm² (L+N+PE)
• Cable entries: Pole type: 1×Φ26: 1×M25×1.5 cable glands (DQM-I/I Ex eb, plastic).
• Weight: 3.3kg~8.2kg

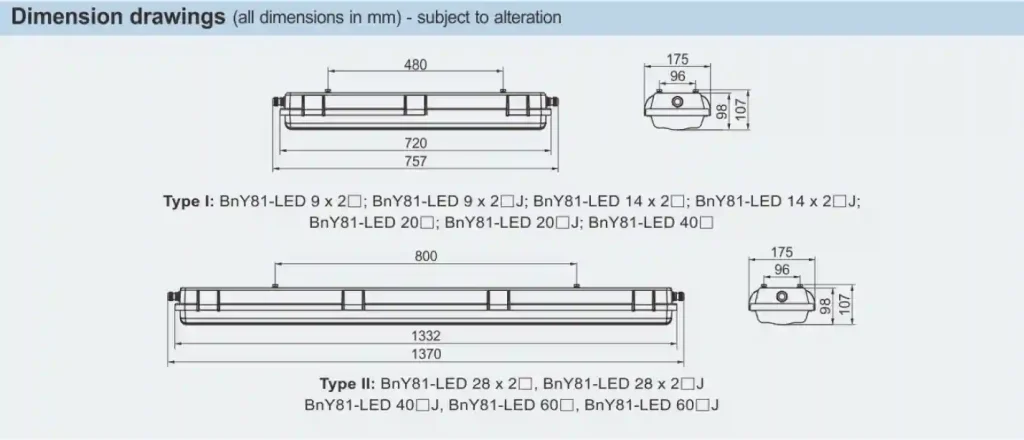

• Size: 175x1370x107mm
• Mounting: L: ploe type; X: ceiling type, B: wall type, G: pendant pole type, D: pendant chain type.
• Available cable outer diameter: Φ9~Φ16(mm)
• Emergency unit: with emergency controller and battery pack
• Emergency power: 9W x 2 x 77%, 14W x 2 x 50%, 28W x 2 x 25%
                                20W x 70%, 40W x 35%, 60W x 23%
• Emergency starting time: 0.3s
• Charging time: 24h
• Emergency lighting time: 120min(180min is optional)
• HS code: 940549
• Country of origin: China

Applicable Industries

Explosion-Proof Fluorescent Luminaire is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.
It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.

Credibility

Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across with the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.
Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.

FAQ

Q1: Are the explosion-proof fluorescent lights suitable for outdoor environments?
A: Yes, the product features an IP66 protection rating, enabling it to withstand outdoor rain, snow, and dusty conditions.
Q2: Do you support customization for different voltages?
A: Yes, we support customization and can provide a range of voltages from 100V to 277V among other custom voltage specifications.
Q3: What installation options are available?
A: We offer various flexible installation methods, including ploe type, ceiling type, pendant pole type, pendant chain type and wall type.
