Product Details
Place of Origin: China
Brand Name: Warom
Certification: IECEx; ATEX;

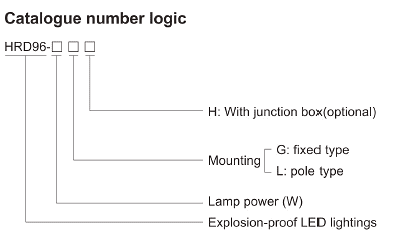

Model Number: HRD96
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Applicable Lamp And Power (max.120W): |
LED : 30W, 60W, 120W |
Explosion Protection: |
CENELEC,IEC,NEC |
Can Be Used In: |
Zone 1,2,21,22 Class I, Zone 1,2 Division 1, Groups A, B, C, D |
Three Enclosure Type: |
30, 60, 120 |
Dimensions: |
316x316x118mm |
Rated Luminous Flux: |
3150~12300lm |
Applicable Lamp And Power (max.120W): |
LED : 30W, 60W, 120W |
Explosion Protection: |
CENELEC,IEC,NEC |
Can Be Used In: |
Zone 1,2,21,22 Class I, Zone 1,2 Division 1, Groups A, B, C, D |
Three Enclosure Type: |
30, 60, 120 |
Dimensions: |
316x316x118mm |
Rated Luminous Flux: |
3150~12300lm |
| Global (IECEx) | IECEx (applied for) |
| Gas and dust |
Ex db IIC T6 Gb Ex tb IIIC T80℃ Db |
| Europe (ATEX) | ATEX (applied for) |
| Gas and dust | II 2 G Ex db IIC T6 Gb |
| II 2 D Ex tb IIIC T80℃ Db |
|
| Certificates | IECEx; ATEX |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Ambient temperature | -40℃~+55℃ |
| Material |
Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021) Toughened glass, stands 4J impact |
| Weight | 2~5.5kg |
| Dimensions | 316x316x118mm |
| Lamp specification | LED module, Multiple LED |
| Lamp power (W) | 30W, 60W, 120W |
| Rated voltage | 220~240V AC 50/60Hz |
| Rated luminous flux | 3150~12300lm |
| Terminal | 3 x 1.5~4mm2 (L+N+PE) |
| Cable entries | M25 x 1.5 |
| Available cable outer diameter | Φ10~Φ14 (mm) |
HRD96 Series Explosion-proof LED Lightings
(Download here:HRD96 Series Explosion-proof LED Lightings.pdf)
