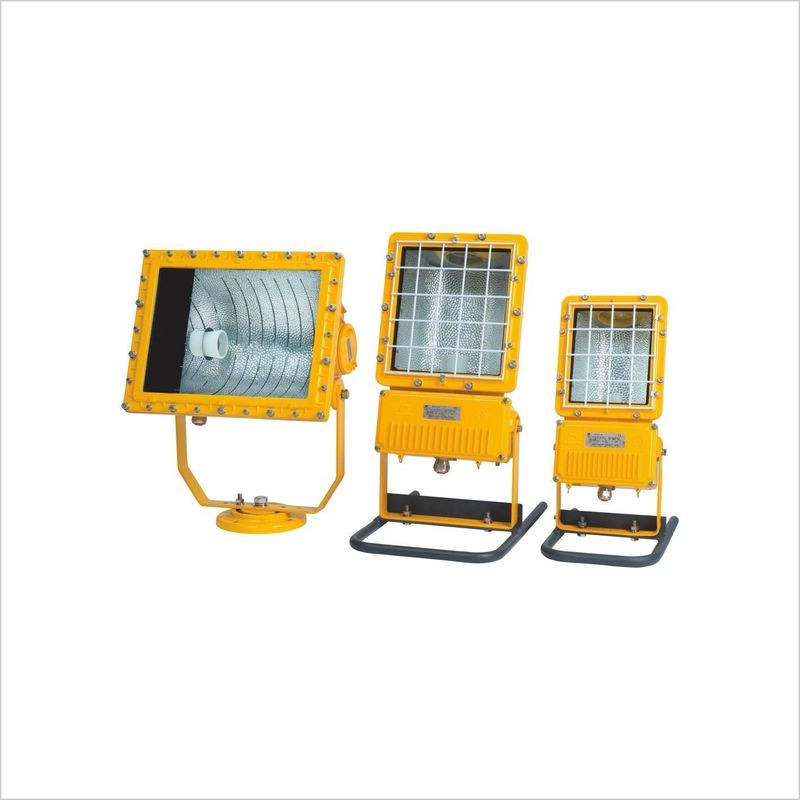

BAT53 Series Explosion Proof...
- ◆ This explosion proof floodlight features Ex e enclosure with explosion-proof components inside.
- ◆ Explosion-Proof Floodlights come with integral control gear, enabling easy installation and maintenance
- ◆Explosion-Proof Floodlights feature a toughened glass cover resistant to temperature changes
TECHNICAL DATA
Product Parameters
- Product Type: BAT53
- Standards: CENELEC, IEC, NEC
- Zones:
- Zone 1 and Zone 2
- Zone 21 and Zone 22
- Class I, Zone 1 and Zone 2
- Class I, Division 2, Groups C, D
- Class I, Division 1, Groups C, D
- Explosion protection:
IECEX(Gas and dust):
Ex d e IIB T□1) Gb
Ex tb IIIC T□1) Db IP66
ATEX(Gas and dust):
II 2 G Ex db e IIB T□1) Gb
II 2 D Ex tb IIIC T□1) Db IP66
- Material:
- Enclosure: Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021)
- Glass cover: Toughened glass, stands 4J impact
- Internal reflector: High-purity aluminium
- Exposed fastener: Stainless steel
- Ballast: Electromagnetic ballast, rapid starting, stable performance
- Lamp holder: E27~E40
- Available lamp and lamp power (W):
- High pressure sodium lamp (HSE): 150W, 250W
- High pressure mercury lamp (HME): 250W
- Metal halide lamp (HIE): 250W
- Rated luminous flux: 5800~42500lm
- Rated voltage: 220~240V AC 50Hz (60Hz is optional)
- Earthing protection: M5 (internal & external earth bolts)
- Degree of protection: IP66
- Ambient temperature: -60°C~+55°C
- Terminal: 3 x 1.5~2.5mm² (L+N+PE)
- Cable entries: 2 x Φ21: 1 x M20 x 1.5 cable gland (DQM-I Ex e), 1 x M20 x 1.5 plug
- Available cable outer diameter: Φ10~Φ14 (mm)
- Weight: 8.45~115kg
- HS code: 940549
- Country of origin: China
Applicable Industries
Explosion-Proof Floodlights is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.
It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.
Credibility
Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.
Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.
FAQ
Q1: Are the explosion-proof floodlights suitable for outdoor environments?
A1: Yes, the product features an IP66 protection rating, enabling it to withstand outdoor rain, snow, and dusty conditions.
Q2: Do you support customization for different voltages?
A2: Yes, we support customization and can provide a range of voltages from 220V to 240V among other custom voltage specifications.
Q3: What installation options are available?
A3: We offer various flexible installation methods, including pendant mounting, wall mounting, ceiling mounting, and pendant chain installation.
