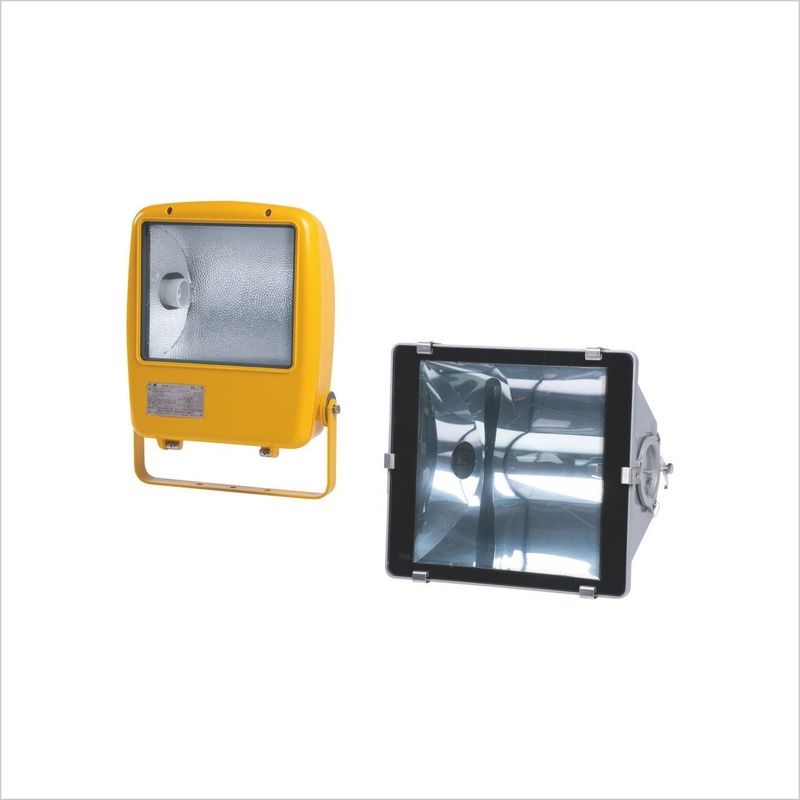

BnT81 Series Aluminium Atex Led Floodlights , Hazardous Location Led Lights 150W~1000W

Product Details

Place of Origin: China

Brand Name: Warom

Certification: IECEx; ATEX; CU-TR;UL

Model Number: BnT81

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

aluminium flood light explosion proof

,

atex led floodlight hazardous location

,

zone 2 atex led floodlights

Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone 2,21,22,Class I,Zone 2.Class I,Division 2,Groups A,B,C,D
Two Enclosure Types:
400, 1000. Type 400: Lamp And Ballast Are Of Integral Type Type 1000: Lamp And Ballast Are Split Type
Enclosure In:
Copper-free Aluminium Alloy, Powder Coated Surface, Yellow (RAL 1021)
Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone 2,21,22,Class I,Zone 2.Class I,Division 2,Groups A,B,C,D
Two Enclosure Types:
400, 1000. Type 400: Lamp And Ballast Are Of Integral Type Type 1000: Lamp And Ballast Are Split Type
Enclosure In:
Copper-free Aluminium Alloy, Powder Coated Surface, Yellow (RAL 1021)
Description
BnT81 Series Aluminium Atex Led Floodlights , Hazardous Location Led Lights 150W~1000W
Product Introduction

20190617101846415.png@!w400




Specification
Global (IECEx) IECEx CQM 12.0011X
Gas and dust

Ex nR IIC T3 Gc, Ex nR IIC T252'℃ Gc,

Ex tb lll C T190'C Db, Ex tb lll C T195'℃ Db, Ex tb ll C T252'℃ Db

Europe (ATEX)

LCIE 12 ATEX 1012X(gas)

LCIE 12 ATEX 3052X(dust)

Gas and dust  20190603152349458.jpg@!w400 II 3 G Ex nR IIC xxx1) Gc
   20190603152349458.jpg@!w400 II 2 D Ex t IIIC Txxx℃1) Db IP65
Certificates IECEx; ATEX;CU-TR; UL
Conformity to standards EN; IEC; UL; CSA
Degree of protection IP65
Ambient temperature ATEX/IECEx:-60℃~+55℃; UL:-60℃~+45℃



Data
Material

Copper-free Aluminium Alloy,powder coated surface,yellow(RAL101),

Toughened glass,stands 4J impact

Weight 16.10kg/12.85kg
Dimensions As per design
Lamp specification HIE HSE
Lamp power (W) 150~1000W
Rated voltage

US standard: 120V/208V/240V/277V/480V AC 60Hz (50Hz)

Eur standard: 220~240V, 250V AC 50Hz (60Hz)

Rated luminous flux 18000~56500lm
Terminal 3 x 1.5~4mm2 (L+N+PE)
Cable entries Φ21:1×M20×1.5 plug,1×M20×1.5 cable gland
Applicable cable outer diameter Φ5~Φ10 (mm)



Download

BnT81 Series Explosion-proof Floodlights

(Download here:icon_pdf.gifBnT81 Series Explosion-proof Floodlights.pdf.)



Global (IECEx): IECEx CQM 12.0011X

(Download here:icon_pdf.gifIECEx CQM 12.0011X )
