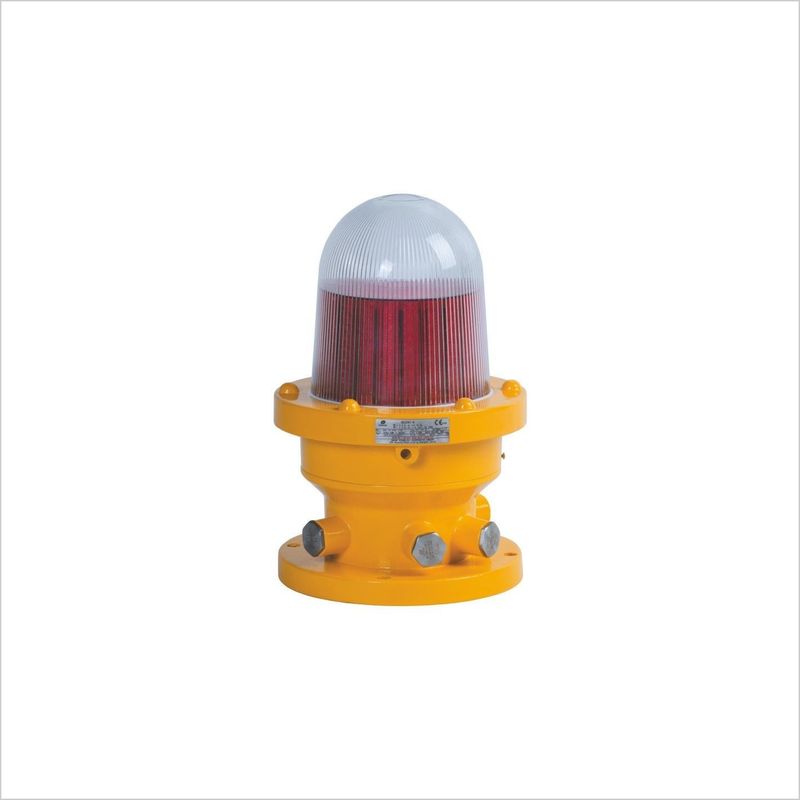

BSZD81-E Series Caution Spotlight Fittings Explosion Proof IP65 Protection

Product Details

Place of Origin: China

Brand Name: Warom

Certification: IECEx; ATEX; CU-TR

Model Number: BSZD81-E

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

ip65 protection caution spotlingt fittings

,

explosion proof caution spotlight fittings

,

powder coated surface explosion proof spotlight

Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 2,Groups A,B,C,D
Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 2,Groups A,B,C,D
Description
BSZD81-E Series Caution Spotlight Fittings Explosion Proof IP65 Protection



Product Introduction

20200410155602524.png@!w400




Specification
Global (IECEx) IECEx CQM 11.0026X
Gas and dust

Ex d e IIC T6 Gb

Ex tb IIIC T80℃ Db IP65

Europe (ATEX) EPT 14 ATEX 1155
Gas and dust

20190603152349458.jpg@!w400

II 2 G Ex d e IIC T6 Gb




20190603152349458.jpg@!w400

II 2 D Ex tb IIIC T80℃ Db IP65

Certificates IECEx; ATEX; CU-TR
Conformity to standards EN; IEC
Degree of protection IP65



Data
Enclosure

Copper-free Aluminium Alloy, powder coated surface, yellow(RAL1021)

Toughened glass, atands 4J impact

Exposed fastener Stainless steel
Rated voltage 100~240V AC 50/60Hz
Lamp LED
Lamp Power  ≤10W
Lamp Color Red
Max. luminous intensity value >200cd
Flash frequency 16,20,30,40,60,80,120,240(times/min)
Earthing protection M5 (internal & external earth bolts)
Degree of protection IP65
Ambient temperature -20℃~+55℃
Terminal 3 x 1.5~2.5mm2 (L+N+PE)
Cable entries 4 x M25 x 1.5 plugs
Cable gland DQM-I (Ex e)
Weight 10kg



Download

BSZD81-E Series Explosion-proof Caution Spotlight Fittings

(Download here:icon_pdf.gifBSZD81-E Series Explosion-proof Caution Spotlight Fittings.pdf)



Global (IECEx): IECEx CQM 11.0026X

(Download here:icon_pdf.gifIECEx CQM 11.0026X Issue No.1.pdf)
