BAM52 Series Explosion Proof...
- ◆ This explosion proof LED street lamp features Ex e enclosure with explosion-proof components inside.
- ◆ With robust wind resistance, the luminaires and poles of the street lamp series are ideal for extensive use in high-wind areas, including coastal and riverside locations.
- ◆ Lamp is built-in electronic ballast, power factor ≥0.95.
TECHNICAL DATA
Explosion Protection Type

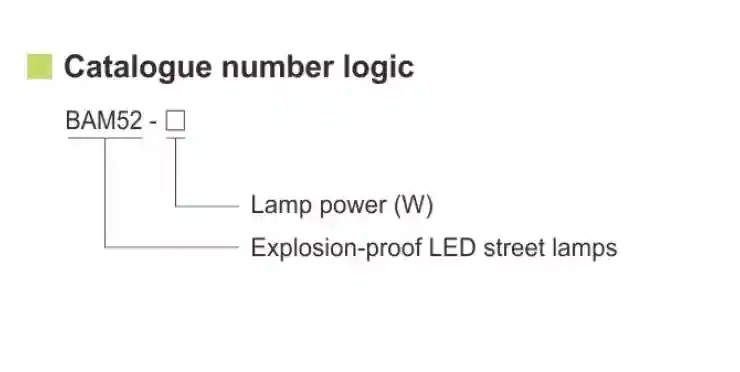

- Product Type: BAM52
- Standards: CENELEC, IEC, NEC
- Zones:
- Zone 2
- Zone 21 and Zone 22
Product Parameters
- Explosion protection:
- IECEx (Gas and dust): Ex nR IIC T6…T5 Gc; Ex tb IIIC T80°C…T95°C Db
- ATEX (Gas and dust): II 3 G Ex nR IIC T6…T5 Gc; II 2 D Ex tb IIIC T80°C…T95°C Db
- Material:
- Enclosure: Aluminium Alloy, powder coated surface
- Glass cover: Toughened glass, stands 4J impact
- Exposed fastener: Stainless steel
- LED driver: Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95, with function of distributed current, constant current, surge-proof and anti-electromagnetic interference, and protection against overcurrent, open circuit, and short circuit
- Lamp specification: LED module, Multiple LED
- Lamp power: 60W, 80W, 100W, 120W, 150W, 160W, 180W, 200W
- Colour temperature: Cool white: 5700K
- Rated luminous flux: 7200~24000lm
- Rated voltage: 100~277V AC 50/60Hz, 130~250V DC
- Degree of protection: IP66
- Ambient temperature: -40°C~+55°C(+45°C)
- Terminal: 3 x 1.5~4mm² (L+N+PE)
- Cable entries: 1×M20×1.5 cable gland (DQM-I Ex e, metal unarmored)
- Weight: 4.7kg~10.9kg

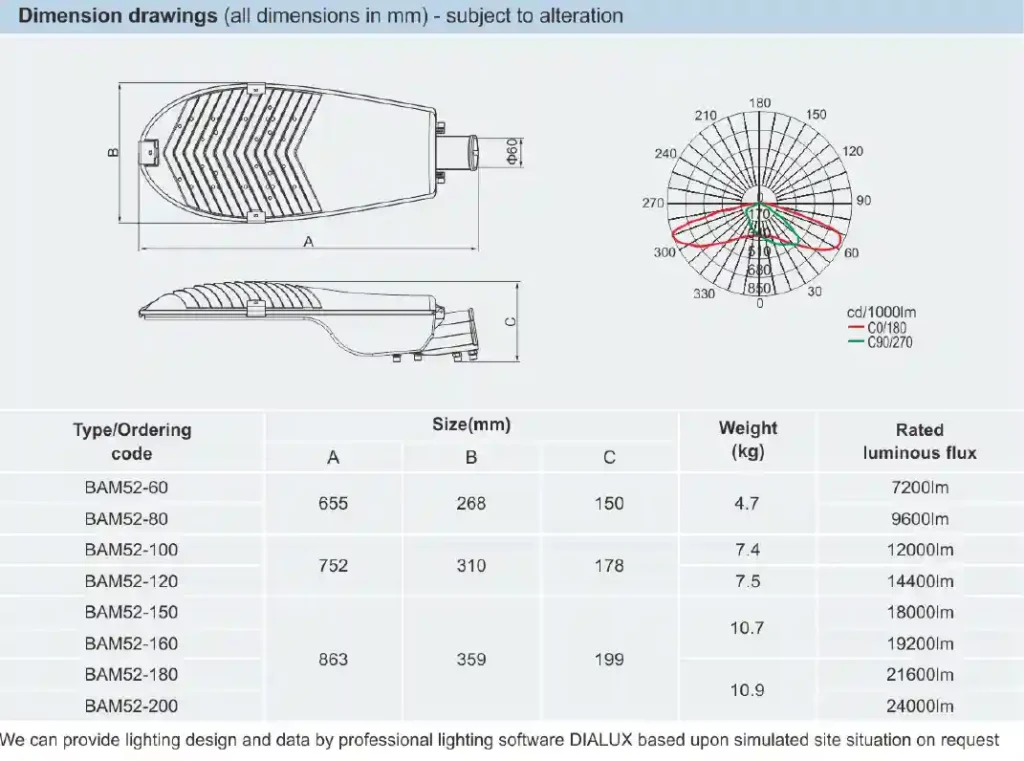

- Size: 655x268x150mm
- Mounting: street lamp type
- HS code: 940549
- Country of origin: China
Applicable Industries
Explosion-Proof LED Street Lamp is suitable for lighting in factory areas and roads within flammable and explosive environments such as oil and gas extraction, refining, chemical industry, and military industry.
It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.
Credibility
Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.
Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.
FAQ
Q1: How many types of lamp poles does this explosion-proof LED street lamps have?
A1: The pole configurations are available in single-arm (Type A), equal-length double-arm (Type B), and unequal-length double-arm (Type C) for users to select according to site requirements.
Q2: Do you support customization for different voltages?
A2: Yes, we support customization and can provide a range of voltages from 100V to 277V among other custom voltage specifications.
Q3: How tall is the lamp pole?
A3: Various heights available, standard supply is 6 m unless otherwise specified. Can be Customized.
