BAYD86 Caution Spotlight Fittings
- "◆ Lighting both in normal condition and emergency condition; When power supply is cut off, the emergency device starts to work; with overcharge, overdischarge protection and short circuit protection.
- ◆ Designed with test button. Press the button, lamp shall automatically enter into emergency status.
- ◆ Ultra-bright LED lamp, low power consumption and long mservice life up to 50,000 hours; energy saving and environmental protection."
TECHNICAL DATA
Explosion Protection Type
- Standards: CENELEC, IEC, NEC.
- Zones:
- Zone 1 and Zone 2.
- Zone 21 and Zone 22.
- Class I, Zone 1 and Zone 2.
- Class I, Division 1, Groups A, B, C, D.
Product Parameters
- Explosion protection:
- IECEx (Gas and dust): Ex mb eb ib IIC T6 Gb; Ex tb IIIC T80°C Db.
- ATEX (Gas and dust): II 2 G Ex mb eb ib IIC T6 Gb; II 2 D Ex tb IIIC T80°C Db.

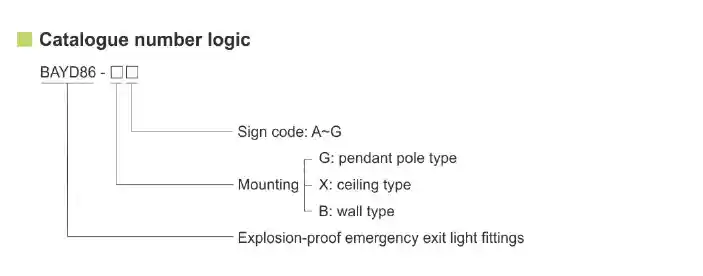

- Product Type: BAYD86.
- Material:
- Enclosure: GRP (glass fiber reinforced polyester).
- Rated voltage: 100~277V AC 50/60Hz, 100~250V DC, 12~48V AC/DC.
- Lamp: LED lamp.
- Power consumption: 15W.
- Emergency time: 180min.
- Battery:
- Rated capacity: 800mAh.
- Charging time: 16h.
- Earthing protection: M5 (internal & external earth bolts).
- Ambient temperature: -40°C~+60°C.
- Terminal: 3 x 1.5~2.5mm² (L+N+PE).
- Cable entries: 2 x M25 x 1.5 plugs.
- Cable gland: DQM-I is recommended.
- Degree of protection: IP66.
- Weight: 8.0kg.
- HS code: 940549.
- Country of origin: China.
Applicable Industries
Explosion-Proof Caution Spotlight is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.
It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.
Credibility
Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.
Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.
FAQ
Q1: What are the special requirements for the power supply configuration of an explosion-proof exit light?
A1: An explosion-proof exit light must be equipped with two power sources:
Normal power supply: for daily operation;
Emergency backup power supply: typically provided by a self-contained generator or storage battery.
Q2: Where should an explosion-proof exit light be installed?
A2: It should be installed above doorways or on walls at corners and along evacuation routes. Stairwells used for evacuation must be clearly marked with visible lightage indicating the location and floor number.
Q3: What is the difference between an explosion-proof exit light and a standard explosion-proof luminaire?
A3: An explosion-proof exit light is a type of explosion-proof luminaire; however, it must be equipped with an emergency backup power supply to ensure continued operation after mains power failure, and it features clearly indicated directional lightage for evacuation.
