BFS Series Explosion-proof Wall-mounted...
- ◆ The explosion proof wall- mounted exhaust fans consist of an explosion-proof motor, impellers, and an integrated mounting bracket, ensuring reliable installation.
- ◆ Aesthetic and Functional: The integrated mounting bracket enhances both appearance and stability of the explosion proof wall- mounted ventilation fan.
- ◆ Quiet Operation: The explosion-protected extraction fans equipped with vibration-reducing components, it operates with minimal noise.
- ◆ Ideal for Specialized Applications: These ventilation van for hazardous areas erfectly suited for air exhaust and intake in environments like equipment rooms and explosionproof cabins.
TECHNICAL DATA
Explosion Protection Type
Standards: CENELEC；IEC
Zones: Zone 1 and Zone 2
Product Parameters
Explosion Protection Ratings:
IECEx(applied for): Ex db IIB T4 Gb；Ex db IIC T4 Gb；Ex tb IIIC T130℃ Db
ATEX(applied for): II 2 G Ex db IIB T4 Gb；II 2 G Ex db IIC T4 Gb；II 2 D Ex tb IIIC T130℃ Db

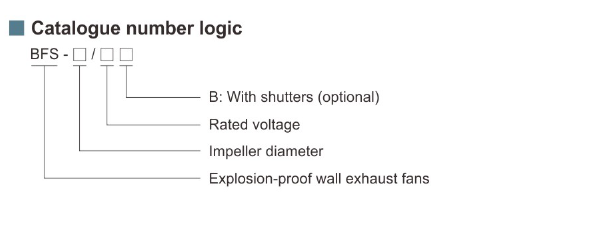

Product Type: BFS
Enclosure Material: Carbon steel or stainless steel
Rated voltage：220V, 380V
Spindle speed：1450r/min
Inlet thread：G3/4″
Cable outer diameter：Φ10mm~Φ14mm
Country of Origin: China
Industry & Application
The explosion-proof wall-mounted exhaust fan is a flameproof type “d” industrial ventilation device designed for hazardous areas containing explosive gases or dust (e.g., Zone 1, 2). As a flameproof wall-mounted exhaust fan, it provides forced ventilation to mitigate explosion risks, ensuring personnel and equipment safety. These explosion proof wall- mounted ventilation fans built with corrosion-resistant materials and a rugged design, it delivers reliable performance in the toughest environments—from offshore platforms and chemical plants to ports and grain silos. It is widely applied in environments requiring ventilation where flammable and explosive hazards are present, such as oil and gas extraction, petroleum refining, chemical processing, offshore oil platforms, cruise ships, and military applications.
Credibility
In hazardous locations, using certified explosion-proof equipment isn’t just a recommendation—it’s the law. Choosing compliant explosion-proof ventilation fans is critical for regulatory compliance and forms the very foundation of safe, legal, and sustainable operations. Our wall-mounted explosion-proof fans are engineered and built to the highest global safety benchmarks, holding key international certificates including ATEX, IECEx, and EAC from accredited authorities. They offer you the ultimate advantage of “certify once, deploy globally,” simplifying and securing your international projects.
CTA
For more detailed information on our explosion-proof wall-mounted exhaust fans customized solutions, or to request a quote, please do not hesitate to contact us. We are committed to providing you with professional solutions and comprehensive technical service support.
FAQ (Frequently Asked Questions)
Q1: What is the fundamental difference between an explosion-proof wall-mounted exhaust fan and a standard industrial exhaust fan?
A1:Standard fans are not certified for safety in hazardous locations and pose a serious risk. Certified explosion-proof fans are legally required. Their certified “flameproof” enclosure is engineered to contain any internal ignition, ensuring it never triggers an external disaster.
Q2: Are explosion-proof wall-mounted fans also suitable for non-hazardous areas?
A2: Yes, but their primary value in such areas lies in their superior durability and reliability. Features like a high Ingress Protection (IP) rating, corrosion-resistant materials, and industrial-grade robust construction can significantly reduce failure rates and extend service life. However, its cost-effectiveness needs to be taken into consideration.
Q3: How to choose the corresponding explosion-proof exhaust fan when in an environment where flammable gases and corrosive media (such as chemical workshops) coexist?
A3: Match TWO criteria: Explosion Protection: Correct Gas Group & Temperature Class; Corrosion Resistance: Specify special materials (e.g., Stainless Steel).
Q4: Can explosion-proof fans be used in food or pharmaceutical industries (non-hazardous areas) requiring frequent washdowns? What are the advantages?
A4: Absolutely! They are the superior choice for hygiene-critical washdown areas. Superior sealing (high IP) withstands pressure washing, and Stainless steel meets sanitary standards.
