BJD81 Caution Spotlight Fittings
- ◆ This Caution Spotlight Fittings Ex e enclosure with explosion-proof components inside.
- ◆ Expolosion proof Caution Spotlight fittings Interlock function between enclosure and diffuser, switches off on opening.
- ◆ Caution Spotlight Fittings is built-in electronic ballast, power factor ≥0.95.
- ◆ Emergency lighting fixtures unit is equipped with protections against overcharge and overdischarge.
- ◆ End of explosion proof lamp life (EOL) rectification effect protection.
TECHNICAL DATA
Product Parameters

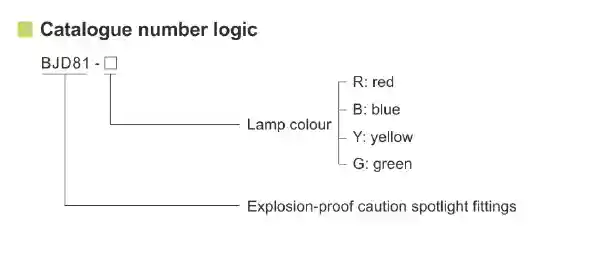

- Product Type: BJD81
- Standards: CENELEC, IEC, and NEC.
- Zones:
- Zone 1 and Zone 2
- Zone 21 and Zone 22
- Class I, Zone 1 and Zone 2
- Class I, Division 2, Groups A, B, C, D
- Explosion Protection Ratings:
- IECEx (Gas and dust): Ex db IIC T6 Gb; Ex tb IIIC T80°C Db
- ATEX (Gas and dust): II 2 G Ex db IIC T6 Gb; II 2 D Ex t IIIC T80°C Db IP66
- Material:
- Enclosure: Copper-free Aluminium Alloy with a powder-coated yellow surface (RAL1021)
- Transparent Cover: Toughened glass capable of withstanding 4J impact
- Exposed Fasteners: Stainless steel
- Rated Voltage:
- IECEx: 220~240V AC 50/60Hz; 100~120V AC 50/60Hz; 24V DC/AC
- ATEX: 220~240V AC 50/60Hz; 24V DC/AC
- Lamp Specification: LED
- Lamp power (W): 3W
- Lamp Colours: Red, blue, yellow, green
- Flash Frequency: 70 (times/min)
- Earthing Protection: M5 internal and external earth bolts
- Degree of Protection: IP66
- Ambient Temperature: -40°C – +55°C
- Terminal: 3 x 1.5~2.5mm² (L+N+PE)
- Cable Entries: 3 x M25 x 1.5 plugs
- Cable glands(optional): DQM-II (Ex d) or DQM-III (Ex d) is recommended
- HS Code: 940549.
- Country of Origin: China.
Applicable Industries
This spotlight is engineered for hazardous environments and various industries, including:
- Petrochemical, natural gas, coal, metallurgy, military, nuclear power, and aerospace.
- Firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, and railways.
- It features a high-strength explosion-proof structure, excellent sealing for high efficiency, and energy savings. It is resistant to corrosion and impact, suitable for harsh environments with high temperatures, dust, or corrosive gases.
Credibility
- Certifications: Warom light fittings carry full ATEX, IECEx, and EAC certifications.
- Durability: Luminaires boast IP65/IP66/IP67 ratings, making them waterproof, dustproof, and corrosion-resistant.
- Support: Warom provides comprehensive technical support, global logistics, and robust warranty coverage for safe illumination in hazardous areas.
FAQ
Q1: What is an Caution Spotlight Fittings? What are its main applications?
A1: Caution Spotlight Fittingst is an aviation warning device specifically designed for hazardous explosive environments. It is used to mark the contours of tall structures such as high-rise buildings, chimneys, and towers to prevent aircraft collisions. It is suitable for: explosive gas atmospheres, combustible dust atmospheres, and special locations such as petroleum refining, chemical and pharmaceutical facilities, military installations, drilling platforms, and oil storage facilities.
Q2: What equipment can the explosion-proof audible and visual alarm be used with?
A2: Fire alarm control panel, manual call point, gas detector, and PLC/DCS system.
Q3: Is the sound of the Explosion-Proof Sound & Light Alarm selectable?
A3: Yes. Depending on the application requirements, a variety of sound patterns are available, such as fire engine, police car, ambulance, or other customized tones.
