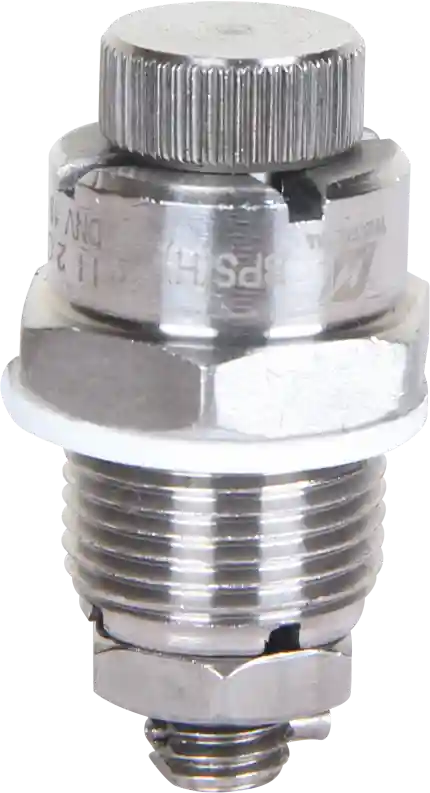

BPS(H)-I Series Explosion-proof Drain...

Place of Origin: China
Brand Name: Warom
Certification: ATEX;
Model Number: BPS(H)-I
Packaging Details: carton packing/wooden box package
Payment Terms: T/T

TECHNICAL DATA

Explosion Protection Type

Standards: CENELEC, IEC, NEC

Zones:

Zone 1 and Zone 2

Zone 21 and Zone 22

Class I, Zone 1 and Zone 2

Class I, Division 1, Groups A , B, C, D

Class I, Division 2, Groups A , B, C, D

Product Parameters

Explosion Protection Ratings:

IECEx(Gas and dust): Ex db IIC T6/T5/96℃ (T4) Gb; Ex tb IIIC T80℃/T95℃/T130℃ Db

ATEX(Gas and dust): II 2 G Ex db IIC T6/T5/96℃ (T4) Gb; II 2 D Ex tb IIIC T80℃/T95℃/T130℃ Db

Product Type: BPS(H)

Material: SS316 (SS304, SS316L is optional)

Thread specification: M20×1.5

Degree of Protection: IP66

Ambient Temperature:T6 for Tamb: -60℃~+44℃;T5 for Tamb: -60℃~+59℃;96℃(T4) for Tamb: -60℃~+60℃

Classification & Origin

HS Code: 760900

Country of Origin: China

Applicable Industries

The explosion-proof drain plugs Suitable for hazardous industrial locations with flammable & explosive gas/dust, such as oil & gas, chemical, mining, offshore platforms, shipbuilding, metallurgy, pharmaceutical, and storage industries.

Credibility

The explosion-proof drain plug strictly complies with international explosion-proof standards including EN 60079 and IEC 60079 series, and has obtained globally recognized certifications such as IECEx, ATEX, and CU-TR. Its explosion-proof performance and protection rating are rigorously tested by authoritative institutions, fully meeting the global access requirements for equipment in hazardous areas, delivering solid and reliable compliance guarantee for safety applications in industries like oil & gas, chemical, and mining.

CTA

For more detailed information on our explosion-proof drain plug, customized solutions, or to request a quote, please do not hesitate to contact us. We are committed to providing you with professional explosion-proof electrical appliances solutions and comprehensive technical service support.

FAQ

Q1: What are the advantages of the product’s material and protection rating?
A1: The main body is made of SS316 stainless steel (SS304/SS316L optional), featuring excellent corrosion and rust resistance, suitable for harsh environments such as marine and highly corrosive areas. With an IP66 protection rating, it is completely dust-tight and resistant to high-pressure water jets, effectively blocking moisture and contaminants from entering equipment enclosures, ensuring stable operation in outdoor, wet and dusty scenarios.

Q2: What are the installation specifications and compatibility of the product?
A2: The product adopts a universal M20×1.5 standard thread specification, compatible with standard mounting holes of most industrial explosion-proof equipment, enabling quick installation without special customization. It also complies with international standards such as EN 60079 and IEC 60079, and can be directly applied to hazardous area equipment in different regions around the world without additional modification.n design requirements to eliminate potential safety hazards.
