BSZD81-C Caution Spotlight Fittings
- "◆ Ultra-bright LED lamp, low consumption and long service life up to 30,000 hours, integrated chip control with various circuit protection.
- ◆ Equipped with an integrated chip and multiple protection circuits, it enables synchronous flashing of multiple lights via a synchronized signal line connection.
- ◆ Low power consumption, high brightness, and long service life, effectively meeting the requirements of energy saving and environmental protection."
TECHNICAL DATA
Product Parameters

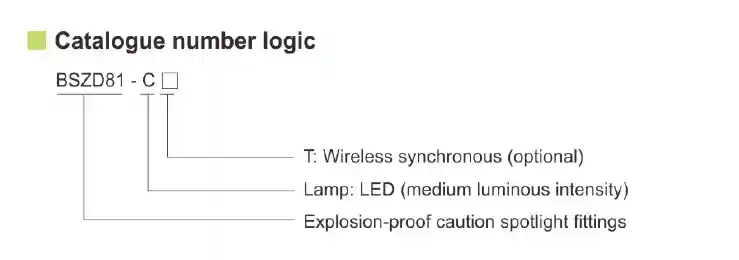

- Product Type: BSZD81-C
- Standards: CENELEC, IEC, NEC.
- Zones:
Zone 1 and Zone 2;
Zone 21 and Zone 22;
Class I, Zone 1 and Zone 2;
Class I, Division 2, Groups A, B, C, D.
- Explosion Protection :
IECEx (Gas and dust): Ex d e llC T6 Gb; Ex tb llIC T80℃ Db IP65
ATEX (Gas and dust): II 2 G Ex tb llIC T80℃ Db IP65 / II 2 D Ex tb llIC T80℃ Db IP65
- Material:
Enclosure:Copper-free Aluminium Alloy, powder coated surfacce, yellow (RAL1021)
Transparent cover:Toughened glass, stands 4J impact
Exposed fastener:Stainless steel
- Enclosure: Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021).
- Transparent cover: Toughened glass, stands 4J impact.
- Exposed fastener: Stainless steel.
- Rated voltage: 100V, 110V, 120V, 127V, 220V, 230V, 240V AC 50/60Hz
- Lamp Specification: LED
- Lamp Power (W): ≤40W (continuous work)
- Lamp colour: Red
- Max. luminous intensity value: >2000cd
- Flash frequency: 16, 20, 30, 40, 60, 80, 120, 240(times/min)
- Earthing protection: M5 (internal & external earth bolts)
- Degree of protection: IP65
- Ambient temperature: -40°C to +55°C
- Terminal: 3 x 1.5~2.5mm² (L+N+PE)
- Cable entries: 4 x M25 x 1.5 plugs
- Cable glands(optional): DQM-I (Ex eb) is recommended
- Weight: 13.8kg.
- HS Code: 940549.
- Country of origin: China.
Applicable Industries
This explosion-proof caution spotlight is specifically engineered for hazardous environments across various sectors, including:
- Petrochemical, natural gas, coal, metallurgy, military, nuclear power, and aerospace.
- Firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, and railways.
- It utilizes a high-strength explosion-proof structure and excellent sealing performance to provide reliable lighting in areas with high temperatures, dust, or corrosive gases.
Credibility
Certifications: Warom light fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications.
Durability: Luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof, and corrosion-resistant.
Support: Warom provides comprehensive technical support, robust warranty coverage, and global logistics for safe project execution in hazardous areas.
FAQ
Q1: What is an Caution Spotlight Fittings? What are its main applications?
A1: Caution Spotlight Fittingst is an aviation warning device specifically designed for hazardous explosive environments. It is used to mark the contours of tall structures such as high-rise buildings, chimneys, and towers to prevent aircraft collisions. It is suitable for: explosive gas atmospheres, combustible dust atmospheres, and special locations such as petroleum refining, chemical and pharmaceutical facilities, military installations, drilling platforms, and oil storage facilities.
Q2: What are the classifications of explosion-proof aviation obstruction lights?
A2: According to light intensity, they are classified into three types: low-intensity, medium-intensity, and high-intensity.
Q3: Do Caution Spotlight Fittings need to flash synchronously?
A3: Yes. According to regulatory requirements, all obstruction lights on the same structure must flash simultaneously to ensure effective warning.
