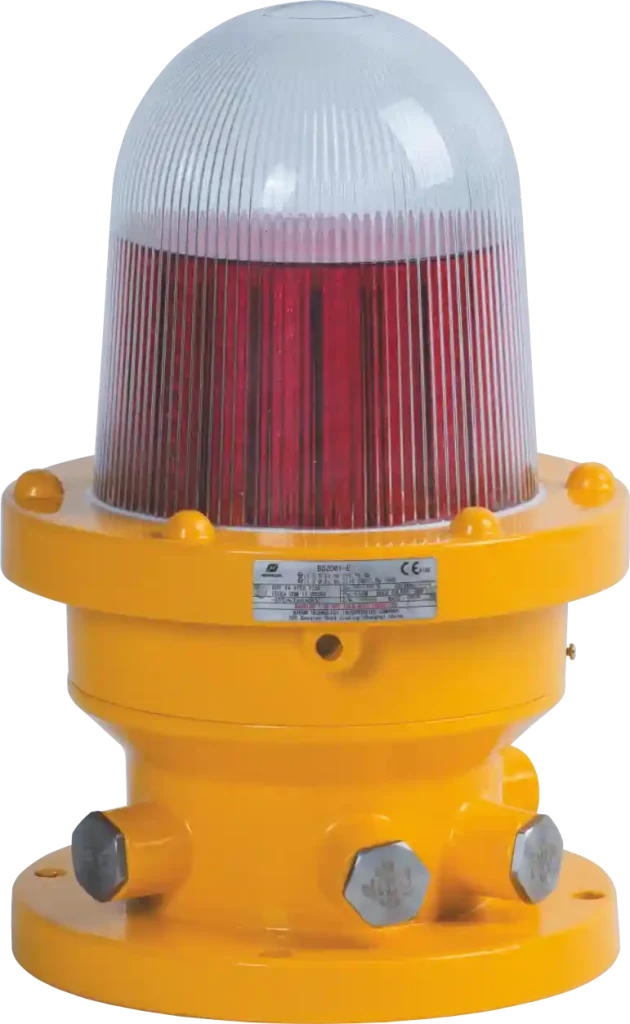

BSZD81-E Caution Spotlight Fittings
- ◆ Ultra-bright LED lamp, low consumption and long service life up to 30,000 hours, integrated chip control with various circuit protection.
- ◆ Equipped with an integrated chip and multiple protection circuits, it enables synchronous flashing of multiple lights via a synchronized signal line connection.
- ◆ Low power consumption, high brightness, and long service life, effectively meeting the requirements of energy saving and environmental protection.
TECHNICAL DATA
Product Parameters

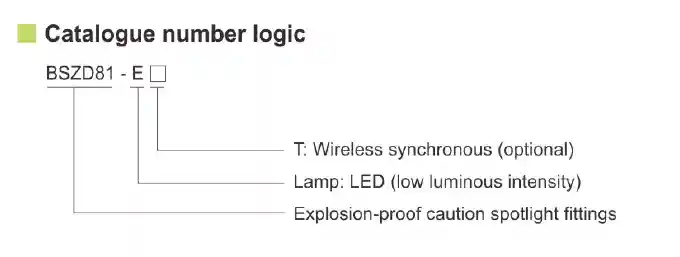

- Product Type: BSZD81-E
- Standards: CENELEC, IEC, and NEC.
- Zones:
Zone 1 and Zone 2
Zone 21 and Zone 22
Class I,Zone 1and Zone 2
Class I,Division 2,Groups A,B,C,D
- Explosion protection：
IECEX(Gas and dust): Ex d e llC T6 Gb； Ex tb llIC T80℃ Db IP65
ATEX(Gas and dust): II 2 G Ex d e llC T6 Gb； II 2 D Ex tb llIC T80℃ Db IP65
- Material:
- Enclosure: Aluminium Alloy with a powder-coated surface.
- Glass Cover: Toughened glass capable of withstanding 4J impact.
- Exposed Fasteners: Stainless steel.
- Rated Voltages: 100V,110V, 120V, 127V, 220V, 230V, 240V AC 50/60Hz
- Lamp specification: LED
- Lamp power (W): ≤10W (continuous work)
- Lamp colour: Red
- Max.lumin6 Gbintensity value: >200cd
- Flash frequency: 16,20,30.40,60,80,120,240(times/min)
- Earthing protection: M5(internal & external earth bolts)
- Degree of Protection: IP65
- Ambient Temperature: -20°C to +55°C (+40°C).
- Terminal: 3 x 1.5~4mm² (L+N+PE)
- Cable Entries: 1 x M20 x 1.5 cable gland (DQM-I Ex e, metal unarmored)
- Cable glands(optional): DQM-I (Ex eb) is recommended
- Weight: 10kg

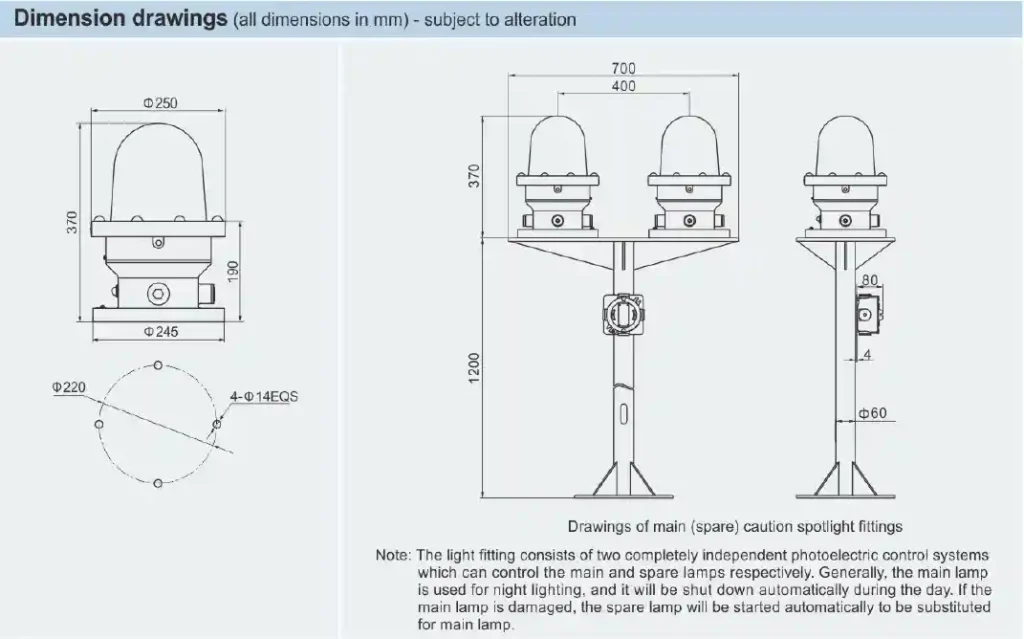

- Size: 960x380x233mm.
- HS Code: 940549.
- Country of Origin: China.
Applicable Industries
This street lamp is specifically engineered for hazardous environments across various sectors, including:
- Petrochemical, natural gas, coal, metallurgy, military, nuclear power, and aerospace.
- Firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, and railways.
- It utilizes a high-strength explosion-proof structure and excellent sealing to provide reliable lighting in areas with high temperatures, dust, or corrosive gases.
Credibility
- Certifications: Warom light fittings meet stringent international standards, carrying full ATEX, IECEx, and EAC certifications.
- Durability: Luminaires feature IP65/IP66/IP67 ratings and are waterproof, dustproof, and corrosion-resistant.
- Support: Warom provides technical support, robust warranty coverage, and global logistics for safe project execution in hazardous areas.
FAQ
Q1: What is an Caution Spotlight Fittings? What are its main applications?
A1: Caution Spotlight Fittingst is an aviation warning device specifically designed for hazardous explosive environments. It is used to mark the contours of tall structures such as high-rise buildings, chimneys, and towers to prevent aircraft collisions. It is suitable for: explosive gas atmospheres, combustible dust atmospheres, and special locations such as petroleum refining, chemical and pharmaceutical facilities, military installations, drilling platforms, and oil storage facilities.
Q2: What are the classifications of explosion-proof aviation obstruction lights?
A2: According to light intensity, they are classified into three types: low-intensity, medium-intensity, and high-intensity.
Q3: Do Caution Spotlight Fittings need to flash synchronously?
A3: Yes. According to regulatory requirements, all obstruction lights on the same structure must flash simultaneously to ensure effective warning.
