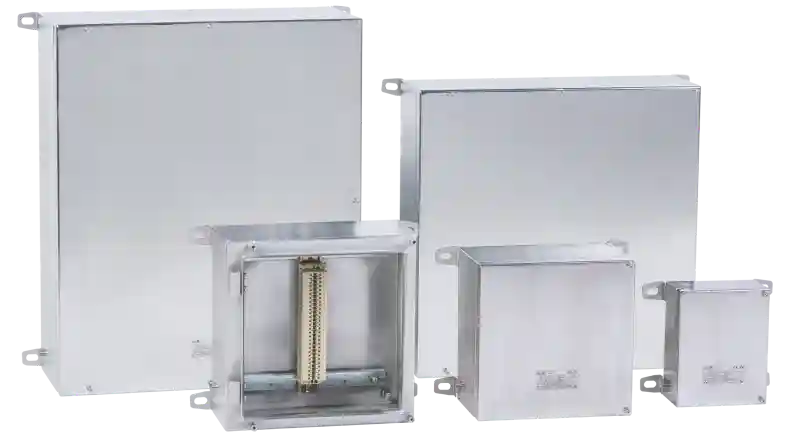

FXJ Series Weatherproof Terminal...
- ◆ Mainly utilized for wiring and piping in conduits, enabling connection and distribution of lines.
- ◆ All external fastening components are constructed from stainless steel, while sealing components are made of silicone rubber, offering resistance to oil, acids, alkalis, high temperatures, and aging.
- ◆ For cable wiring, equipped with a composite sealing type cable gland (for steel conduit wiring, please specify).
- ◆ The joint surface adopts a labyrinth path sealing structure, providing excellent weather-proof performance.
- ◆ Multiple entries of different orientations are available, allowing users to freely choose according to their requirements.intenance.
TECHNICAL DATA
Product Parameters
- Product Type: FXJ
- Standards: GB, EN
- Rated voltage: 220V/380V、230V/400V(GB); Max. 1000V AC 50/60Hz, Max. 1500V DC (EN)
- Rated current: ≤630A(GB); ≤1000A (EN)
- Ambient temperature: -40℃～+55℃ (-60℃~+60℃Optional)
- Degree of protection: IP66、IP67(Optional)
- Corrosion-proof: WF2(GB); C4(EN)
- Enclosure material: GPR(PC Optional), Stainless steel, Carbon steel, Aluminum alloy
- HS code: 853690
- Country of origin: China
Applicable Industries
Weatherproof Terminal Boxes are widely applied in a broad spectrum of industrial sectors, including petrochemical, natural gas, coal, metallurgy, military, nuclear power and aerospace. They also cover firefighting, pharmaceutical, textile, grain and oil processing, municipal services, public security, shipping, ports and railway industries, perfectly matching the power distribution and circuit connection demands of diverse industrial scenarios.
Engineered to withstand humid, dusty, corrosive and outdoor harsh environments, these terminal boxes are ideal for coastal projects, outdoor engineering sites, chemical plants and industrial parks. With excellent waterproof, dustproof and corrosion-resistant performance, they ensure safe and stable circuit wiring and signal transmission under severe working conditions.
Credibility
Weatherproof Terminal Boxes are engineered for safety in hazardous environments. Certified to GB and EN standards, they meet stringent global requirements. It functions not just as a protective firewall for personnel and the environment, but also as a stabilizer for continuous production. These certifications constitute authoritative validation of the product’s safety and reliability, forming a critical gateway to market compliance and acceptance.
CTA
For more detailed information on our weatherproof control box, customized solutions, or to request a quote, please do not hesitate to contact us. We are committed to providing you with professional solutions and comprehensive technical service support.
FAQ
Q1: What is the principle of weatherproof terminal boxes?
A1: Two core protection designs: Sealed structure with high-quality gaskets to block dust, water and corrosives; high-strength, corrosion-resistant materials with precision joints for outdoor/humid/dusty conditions.
Q2: Do weatherproof terminal boxes need regular maintenance?
A2: Yes. Check for aging/damaged gaskets, tight fasteners and intact shell; replace damaged parts with certified/original ones and restore original weatherproof and IP rating after maintenance.
Q3: Can internal wiring be connected carelessly after installing the weatherproof terminal boxes?
A3: No! The box only provides weatherproof protection. Internal wiring must follow electrical standards, and matching circuit equipment must meet corresponding weatherproof requirements.
Q4: What materials are weatherproof terminal boxes made of?
A4: Mainly high-performance engineering plastic or alloy, featuring high strength, corrosion resistance and UV resistance for outdoor use.
Q5: Can weatherproof terminal boxes be used for outdoor long-term use?
A5: Yes. With anti-aging and stable weatherproof performance, they can withstand long-term outdoor exposure and extreme temperatures.
